90*Tube Elb.M.Jic X F.Bspp Sw.

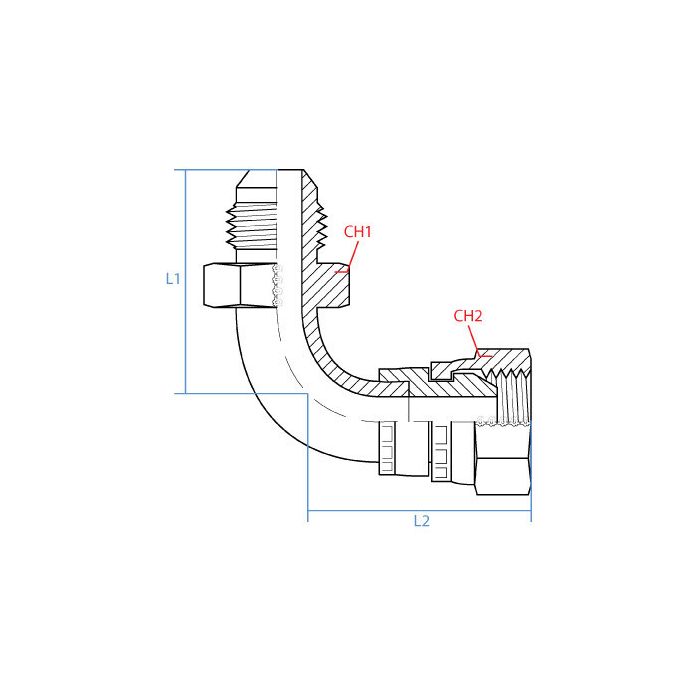

CH1 Width 28.5mm	CH2 Width 32mm	L1 Length 70mm	L2 Length 63mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 4mm	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9250-12-12	Product Weight 0.55 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a hydraulic line that needs to make a hard turn in a tight spot, will this fitting handle that without needing extra adapters on either end?

Question by: Bobby H on Mar 2, 2026, 2:00 PM

For a 90-degree direction change between a male JIC and a female BSPP swivel connection, this is a one-piece solution. The JIC side runs a 1-1/16-12 UN thread at 3/4" and the BSPP swivel side matches at 3/4" as well. Overall length comes in at 70mm, so it fits reasonably well in confined spaces. The swivel feature on the BSPP end also helps a good bit when you're trying to get everything lined up without twisting the hose.

Answer by: Customer Support on Mar 4, 2026, 10:35 AM

What kind of steel is this elbow adapter made from?

Question by: Todd J on Jul 13, 2025, 9:14 AM

Constructed from durable steel, this elbow adapter is well-suited for demanding industrial applications.

Answer by: Customer Support on Jul 15, 2025, 6:08 AM
