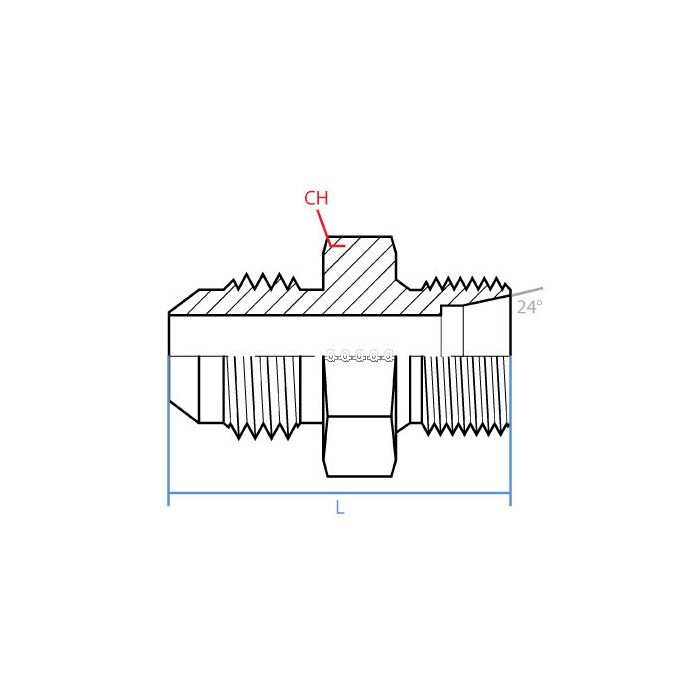

Male Jic X Male Metric Kobelco

CH Width 41mm	L Length 55.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout 22mm	Side 2 Gender M	Side 2 Size L28 SPECIAL	Side 2 Type Kobelco	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9247-16-28-36	Product Weight 0.45 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this here adapter fit a Kobelco excavator?

Question by: Ross S on Aug 29, 2025, 7:58 PM

It is specifically designed to fit Kobelco equipment utilizing a 22mm L28 male connection, along with any equipment using a 1-5/16 - 12 UN 1-inch JIC male end.

Answer by: Customer Support on Aug 31, 2025, 6:48 PM
