Mjic X Jsw Male Tube End 9245-12-25-34

Specifications

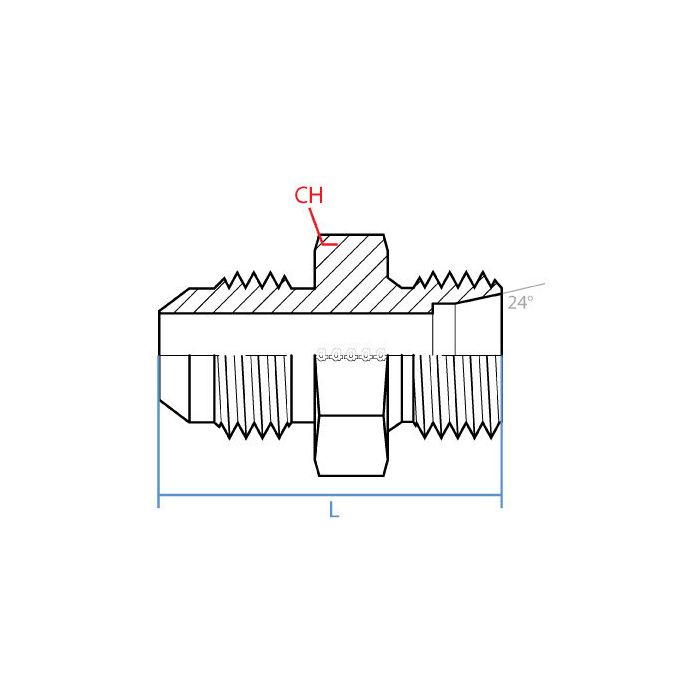

CH Width 41mm	L Length 53.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 14mm	Side 2 Gender M	Side 2 Size L25 SPECIAL	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number C1GB55, Alternate Part Number MI-02116411, Alternate Part Number MINO-03671J02747	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9245-12-25-34	Product Weight 0.55 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fit on my Komatsu equipment? I need to connect a JIC fitting to a DIN tube.

Question by: Neal W on May 2, 2025, 11:40 AM

This adapter is designed to connect a 3/4" JIC male fitting to a 14mm DIN tube. You'll want to verify those sizes match what's on your Komatsu equipment.

Answer by: Customer Support on May 4, 2025, 11:06 AM

got a 3/4 JIC male fitting on one end of my line and need to tie into a 14mm DIN tube port on the other side, is this the adapter that handles that?

Question by: Terry A on Apr 9, 2025, 5:13 PM

That's exactly what this one does. One end is a 3/4 inch male JIC with a 1-1/16-12 UN thread, and the other end is a 14mm male DIN tube end, listed here as the L25 Special designation. Both sides are male, so you'd be threading this into female ports or mating fittings on each end. It's a straight configuration, no angle to it, and the overall length runs 53.5mm with a 41mm wrench flat for tightening. Steel construction throughout.

Answer by: Customer Support on Apr 11, 2025, 11:00 AM
