Male Jic X Female Bspp Swivel 9240-24-24

Specifications

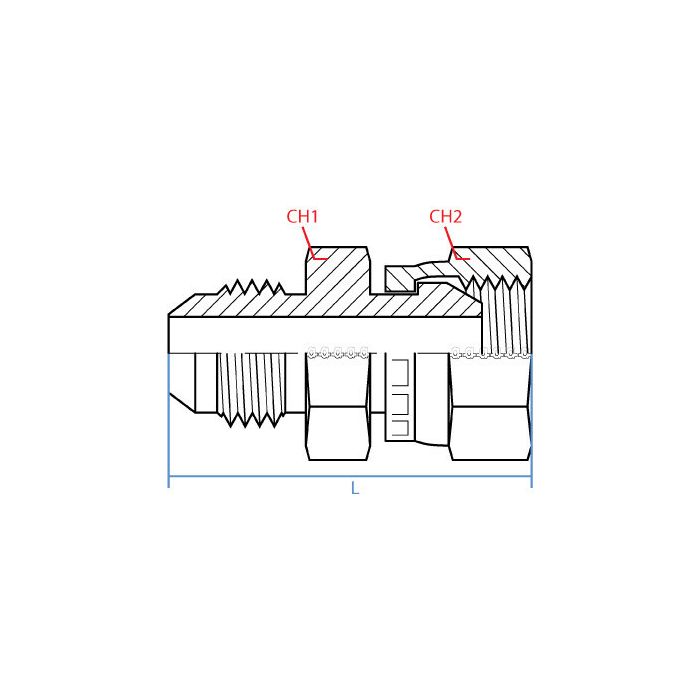

CH1 Width 50mm	CH2 Width 55mm	L Length 72.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1-1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9240-24-24	Product Weight 1.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting swivel on both ends or just the BSPP side?

Question by: Larry S on Oct 3, 2025, 4:40 PM

Just the BSPP (British Standard Pipe Parallel) end swivels. The JIC (Joint Industry Council) side is fixed. That swivel is there to help you get things lined up without twisting your hose too much when you're tightening it all down.

Answer by: Customer Support on Oct 4, 2025, 9:45 PM

Got a hydraulic line running 1-1/2 inch JIC on one end that needs to tie into a BSPP port on a piece of imported equipment. This the right fitting to make that happen?

Question by: Denise P on Dec 4, 2025, 7:42 PM

That connection is exactly what this adapter is built for. The male end runs 1-1/2 inch JIC with a 1-7/8-12 UN thread form, and the female end accepts a 1-1/2 inch BSPP port. The straight configuration keeps things inline, so if your line runs directly into that port without needing an angle, this fitting handles the conversion clean and simple.

Answer by: Customer Support on Dec 6, 2025, 7:18 AM

trying to hook a 1-1/2 jic male line into a 1-1/2 bspp female port. is this the straight adapter for that

Question by: Kurt C on Feb 21, 2026, 12:41 PM

For a straight thread conversion, this fitting connects a 1-1/2 inch JIC male end with 1-7/8-12 UN threads to a 1-1/2 inch BSPP female port on the other side.

Answer by: Customer Support on Feb 22, 2026, 1:40 PM
