Male Jic X Female Bspp Swivel 9240-20-20

Specifications

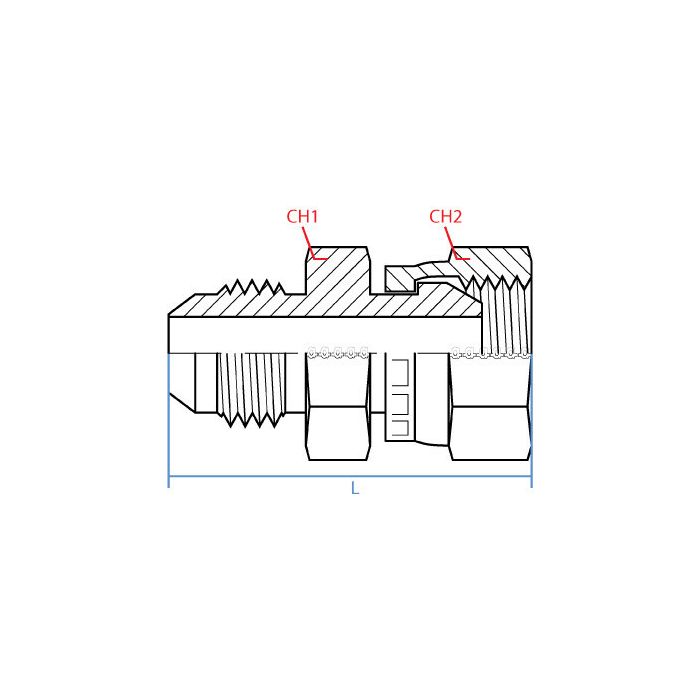

CH1 Width 46mm	CH2 Width 50mm	L Length 64.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1-1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9240-20-20	Product Weight 0.95 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a machine running BSPP ports on one end and JIC fittings on the other, this the kind of adapter that bridges that gap?

Question by: Kurt F on Feb 14, 2026, 7:44 AM

That's what this fitting does. One side is a 1-1/4 inch male JIC with a 1-5/8 - 12 UN thread, and the other is a 1-1/4 inch female BSPP. So if you've got a hydraulic line or component on each of those two thread standards, this swivel connects them straight through without any additional adapters in between.

Answer by: Customer Support on Feb 15, 2026, 7:49 AM

Will this swivel hold up okay in a hydraulic setup that's running pretty much non-stop?

Question by: Scott H on May 12, 2025, 4:42 PM

Crafted from steel, this swivel is definitely built to handle demanding industrial applications, so it should provide reliable performance even in continuous-use situations.

Answer by: Customer Support on May 14, 2025, 7:35 AM

got a hose end that’s 1-5/8 - 12 UN JIC male. will this swivel mate up if the other side i need is 1-1/4" BSPP female

Question by: Stan C on Feb 27, 2026, 4:18 PM

It’s a straight steel adapter with a 1-5/8 - 12 UN male JIC on one end and a 1-1/4 inch female BSPP swivel on the other, so it matches the connection types and sizes you called out.

Answer by: Customer Support on Feb 28, 2026, 9:47 PM
