Male Jic X Female Bspp Swivel

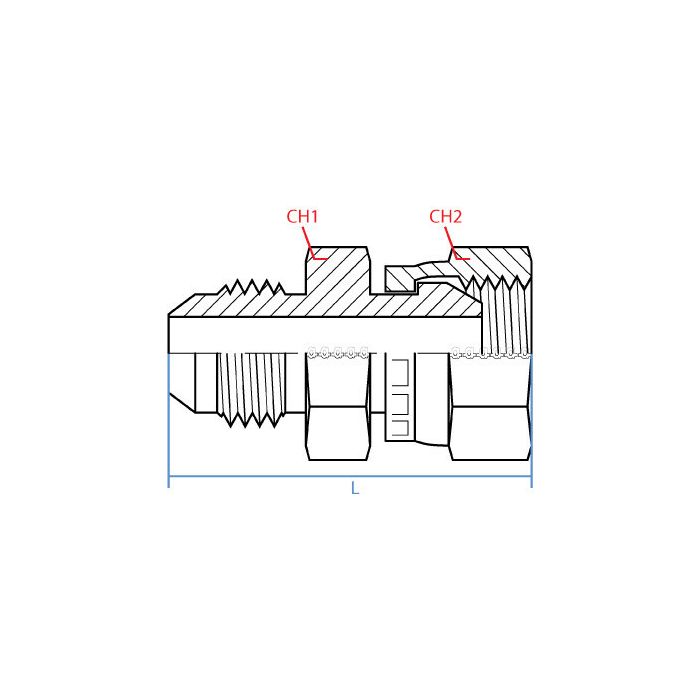

CH1 Width 25.5mm	CH2 Width 27mm	L Length 47.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9240-10-08	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 5/8 jic male line to a 1/2 bspp port, is this the right adapter

Question by: Joyce E on Jul 13, 2025, 9:10 PM

For that combo, it matches up as a straight steel adapter from a 5/8 inch JIC male with 7/8-14 UNF threads over to a 1/2 inch female BSPP swivel.

Answer by: Customer Support on Jul 15, 2025, 4:53 PM

fitting's 47.3mm long, that gonna be enough clearance to thread up in a tight spot without having to reroute the whole line?

Question by: Kurt A on Oct 19, 2025, 11:34 AM

At just under two inches, that length works fine for most standard inline connections, but tight quarters can vary a lot depending on what's around it. The 25.5mm and 27mm wrench flats give you decent grip for tightening, so you're not fighting the fitting itself. If the space is really cramped, the bigger concern is usually getting a wrench on it rather than the body length causing a conflict.

Answer by: Customer Support on Oct 21, 2025, 6:17 AM
