Male Jic X Female Bspp Swivel 9240-06-08

Specifications

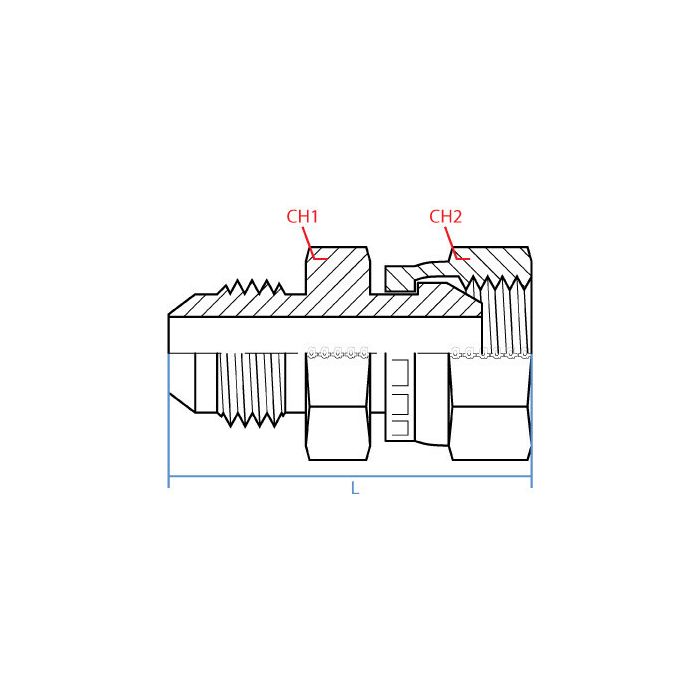

CH1 Width 19mm	CH2 Width 25.5mm	L Length 40.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9240-06-08	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this fitting will hold up okay in a hydraulic system running around 2000 psi?

Question by: Gene H on Aug 2, 2025, 7:10 AM

This steel fitting is engineered to withstand robust industrial applications, so it should perform well within a 2000 psi hydraulic system.

Answer by: Customer Support on Aug 4, 2025, 8:54 AM

trying to replace a fitting, is this one the straight adapter that goes from 9/16-18 UNF male JIC (3/8) over to a 1/2 female BSPP swivel?

Question by: Melvin W on Apr 6, 2025, 4:13 PM

For a fit check, the connections on this part are a 9/16-18 UNF male JIC on one side in 3/8 size, and a 1/2 female BSPP swivel on the other side. It is a straight steel fitting.

Answer by: Customer Support on Apr 8, 2025, 7:11 AM

Got a line running JIC on one end and BSPP on the other, will this fitting bridge that gap without needing an extra adapter in between?

Question by: Tammy P on Jan 25, 2026, 8:47 PM

That's exactly what it's built for. One end is a 3/8" male JIC with a 9/16-18 UNF thread, and the other is a 1/2" female BSPP swivel. So yeah, it connects those two standards directly, no additional adapter needed in between.

Answer by: Customer Support on Jan 27, 2026, 8:43 AM
