Male Jic X Female Bspp Swivel 9240-06-04

Specifications

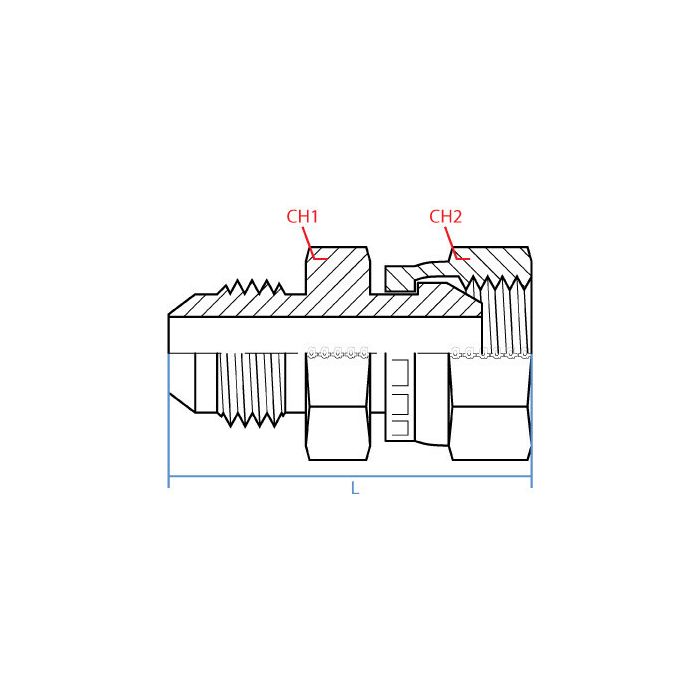

CH1 Width 19mm	CH2 Width 19mm	L Length 36.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Alternate Part Numbers Alternate Part Number MI-02205979, Alternate Part Number MINO-03671X84944	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9240-06-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a line running 3/8" JIC on one end and need to tie into a 1/4" BSPP port, this straight adapter gonna work for that?

Question by: Lee S on May 26, 2025, 6:38 AM

That's what this fitting is built for. One end is a 3/8" JIC male with a 9/16-18 UNF thread, and the other side is a 1/4" BSPP female swivel. Steel construction, straight configuration, 36.8mm long. If your line and port match those specs, you're good to go.

Answer by: Customer Support on May 27, 2025, 7:39 AM

Will this here fitting hold up to regular use in a hydraulic setup?

Question by: Bobby W on Dec 14, 2025, 8:04 AM

Constructed from steel, this adapter is designed for robust and reliable connections in industrial applications, so it should definitely hold up.

Answer by: Customer Support on Dec 15, 2025, 6:46 PM

got a hose with a 3/8 jic male on it and i need to hook into a 1/4 bspp port, is this the right adapter

Question by: Ricky H on Jan 28, 2026, 6:54 PM

For that hookup, it matches a 3/8 inch JIC male on one side and a 1/4 inch BSPP female swivel on the other, in a straight steel adapter.

Answer by: Customer Support on Jan 30, 2026, 8:20 AM
