Male Jic X Female Bspp Swivel 9240-04-02

Specifications

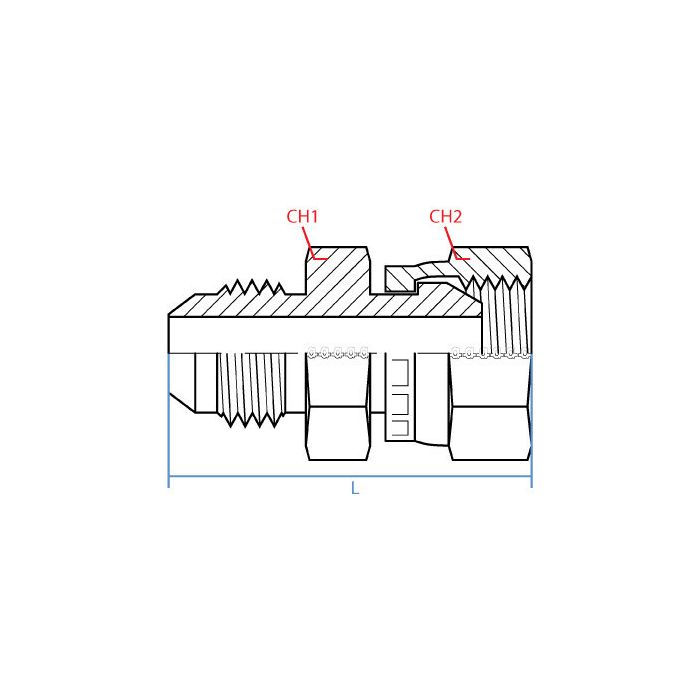

CH1 Width 13mm	CH2 Width 14mm	L Length 34mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9240-04-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting work with a hydraulic setup that's using JIC on one side and BSPP on the other, or am I gonna need somethin' else?

Question by: Wade D on Oct 25, 2025, 10:26 AM

This Adaptall adapter is designed to connect a male JIC fitting to a female BSPP fitting. It's got the right threads for both sides, so it should do the trick for your hydraulic setup.

Answer by: Customer Support on Oct 26, 2025, 10:33 AM

Got a line running 1/4" JIC on one end and need to tie into a BSPP port on a piece of imported equipment. This the right fitting to make that happen?

Question by: Terry O on Apr 1, 2026, 8:55 AM

Yeah, that'll do the job. One end is a 7/16-20 UNF male JIC thread, which is standard for 1/4" JIC lines, and the other is a 1/8" female BSPP swivel. The swivel end gives you a little movement when you're torquing things down, which makes it easier to get a clean connection without stressing the line. Steel construction, straight configuration, so it's a direct in-line adapter with no angle to account for.

Answer by: Customer Support on Apr 3, 2026, 7:40 AM

got a hose end that’s 7/16-20 JIC male, will this adapter mate up with it?

Question by: Troy M on Oct 10, 2025, 8:26 PM

Side 1 is a male JIC in 7/16 - 20 UNF (1/4 inch size). The other side is a female BSPP swivel in 1/8 inch size, so it is meant to transition from that JIC thread to a BSPP connection.

Answer by: Customer Support on Oct 12, 2025, 9:34 AM
