Male Jic X Male Komatsu Union

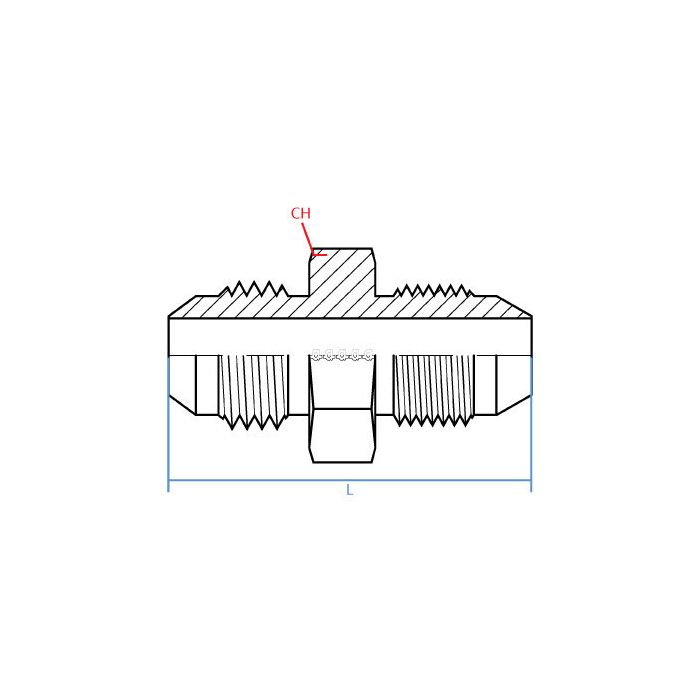

CH Width 32mm	L Length 57.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 20mm	Side 2 Gender M	Side 2 Size 30mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9237-12-30	Product Weight 0.50 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fit my Komatsu equipment alright? Just want to be sure before I order.

Question by: Frank G on Aug 28, 2025, 9:50 AM

This union adapter is designed to connect male JIC fittings to male Komatsu fittings. On the JIC side, it fits a 3/4" size with 1-1/16 - 12 UN callout. The Komatsu side fits a 30mm size with a 20mm callout.

Answer by: Customer Support on Aug 30, 2025, 7:34 AM

Got a Komatsu machine that's leaking at the fitting and I need to swap in a JIC line from my other setup. This union here, the 9237-12-30, will it bridge those two together without needing extra adapters in the middle?

Question by: Phil W on Dec 8, 2025, 11:25 AM

One end threads directly into a Komatsu port at 20mm and the other end connects to a 3/4" JIC male fitting at 1-1/16-12 UN, so yeah, that single piece handles the transition. No additional adapters needed in between. Both sides are male, so make sure the mating ports on your line and your machine are female on each end before ordering.

Answer by: Customer Support on Dec 9, 2025, 1:15 PM
