Male Jic X Male Komatsu Union

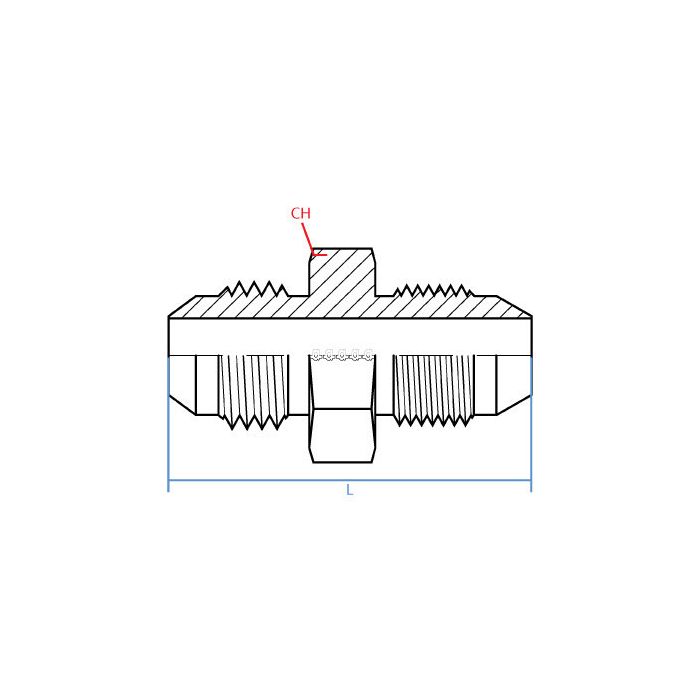

CH Width 28.5mm	L Length 58.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout 18mm	Side 2 Gender M	Side 2 Size 24mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9237-10-24	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose with a 7/8-14 UNF JIC male on it. will this union hook that up to a Komatsu style male end?

Question by: Harold J on Nov 4, 2025, 9:00 AM

On the JIC side, it has a male 7/8 - 14 UNF thread and that is the 5/8 inch JIC size. The other side is a male Komatsu connection with a 24 mm size and an 18 mm thread, so it is meant to bridge those two thread types in a straight union.

Answer by: Customer Support on Nov 5, 2025, 8:22 PM

Got a Komatsu machine that needs a fitting swapped out, does this union actually mate up on the Komatsu side with a 24mm, 18mm thread?

Question by: Vince P on Jul 1, 2025, 10:07 AM

Yeah, that's exactly what Side 2 is built for. The Komatsu end runs a 24mm size with an 18mm thread callout, so it's spec'd to fit standard Komatsu hydraulic connections. The JIC side comes in at 7/8-14 UNF, which is a 5/8" fitting. Both ends are male, so keep that in mind when you're checking what you've got on the machine.

Answer by: Customer Support on Jul 3, 2025, 9:06 AM
