Male Jic X Male Komatsu Union 9237-08-22

Specifications

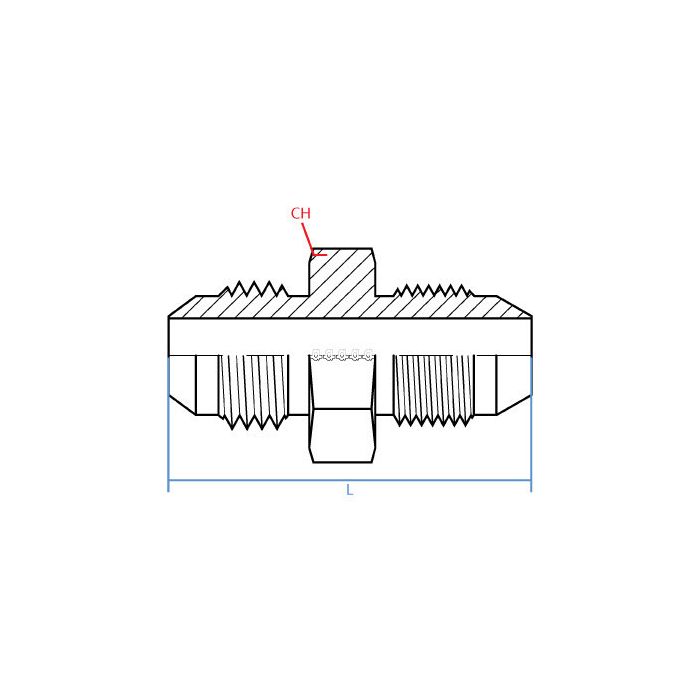

CH Width 27mm	L Length 50.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 16mm	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Komatsu	Alternate Part Numbers Alternate Part Number MI-03072682, Alternate Part Number MINO-03671J03198	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9237-08-22	Product Weight 0.23 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a Komatsu machine that needs a JIC line hooked straight into a male Komatsu port, this union do that without needing extra adapters in between?

Question by: Neil P on Aug 10, 2025, 7:01 PM

That's exactly what it's built for. One end is a 1/2" JIC male fitting on a 3/4-16 UNF thread, and the other is a 22mm male Komatsu port connection. Both sides are male, so you're going straight fitting to port without stacking additional adapters. Steel construction, straight configuration, and at just under 51mm long it keeps things compact in tight spaces around hydraulic circuits on Komatsu equipment.

Answer by: Customer Support on Aug 12, 2025, 6:54 AM

Hey, will this here fitting hook up a JIC to a Komatsu fitting alright?

Question by: Duane C on Jan 9, 2026, 6:36 PM

This male union is indeed what you need to connect a 1/2" JIC male fitting to a 22mm Komatsu male port.

Answer by: Customer Support on Jan 11, 2026, 6:02 AM

got a Komatsu port that’s 22mm, will this union let me hook it straight to a 1/2in JIC hose end?

Question by: Tommy W on Oct 20, 2025, 11:35 AM

For a direct male to male hookup, it bridges a 1/2 inch JIC male with 3/4-16 UNF threads on one side to a 22 mm Komatsu male port on the other, all in a straight steel union.

Answer by: Customer Support on Oct 21, 2025, 2:06 PM
