Male Jic X Male Komatsu Union 9237-06-16

Specifications

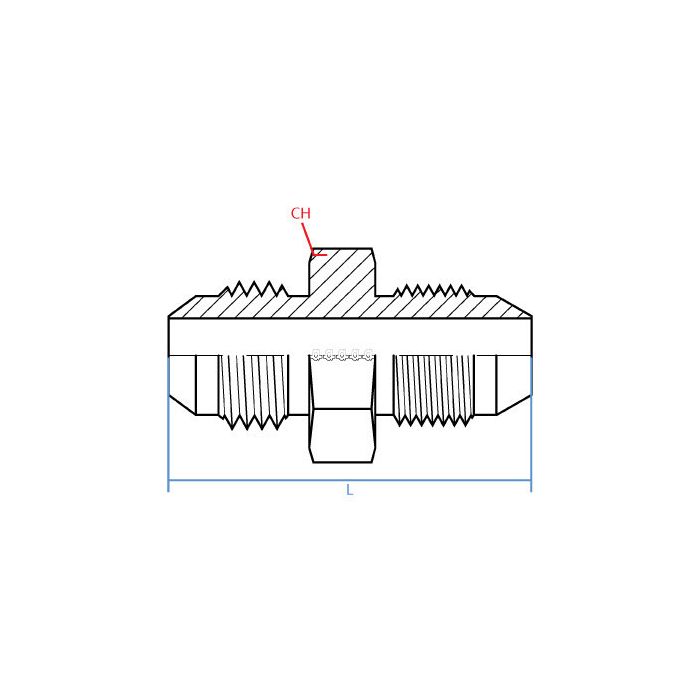

CH Width 20.5mm	L Length 40.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 18mm	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9237-06-16	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose with a 9/16-18 JIC male on it, will this union mate up on that side or am i off a size

Question by: Dwight P on Mar 18, 2026, 7:34 AM

On the JIC side, it has a 9/16-18 UNF male thread and it is called out as a 3/8 inch JIC size, so it matches a 9/16-18 JIC female connection.

Answer by: Customer Support on Mar 20, 2026, 6:19 AM

What size is the JIC end on this fitting? I need to make sure it'll match what I got.

Question by: Ralph H on Jan 31, 2026, 8:28 AM

The JIC side is a 3/8" size with a 9/16 - 18 UNF callout.

Answer by: Customer Support on Feb 1, 2026, 2:26 PM

Got a Komatsu port on a piece of equipment and need to tie it into a JIC line, this union do the trick for a straight connection?

Question by: Steve P on Aug 4, 2025, 7:28 AM

That's what this fitting is built for. One end is an 18mm Komatsu male, the other is a 9/16-18 UNF JIC male, and it runs straight through with no bends or offsets. At 40.3mm overall length it's pretty compact, so it'll fit in tighter spots without much fuss. Steel construction keeps it solid for hydraulic line work.

Answer by: Customer Support on Aug 6, 2025, 6:48 AM
