Male Jic X Male Komatsu Union

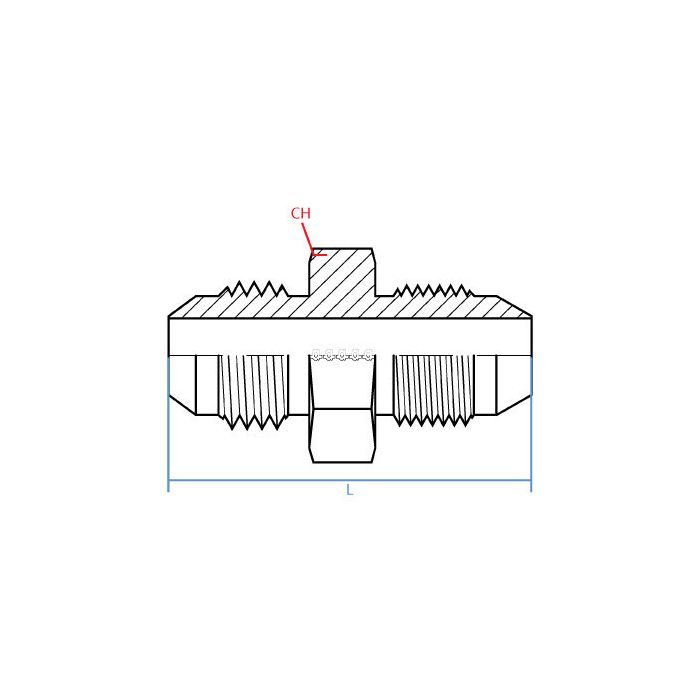

CH Width 17.5mm	L Length 39.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout 16mm	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9237-04-14	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a Komatsu machine that needs a JIC fitting tied into it, does this union go male on both ends, or is one side female?

Question by: Hank J on Jul 31, 2025, 11:59 AM

Both ends are male on this one. The JIC side runs a 7/16-20 UNF thread at 1/4" size, and the Komatsu side is 16mm thread with a 14mm size. So you'd need female receivers on whatever you're connecting into on both sides of the line.

Answer by: Customer Support on Aug 2, 2025, 6:56 AM

trying to swap a hose end over, will this union match up to a 1/4 JIC on one side and a 16mm komatsu on the other?

Question by: Rick A on Dec 20, 2025, 5:51 PM

It has a male JIC on side 1 with 7/16-20 UNF threads in a 1/4 inch size, and a male Komatsu on side 2 with a 16 mm thread in a 14 mm size.

Answer by: Customer Support on Dec 22, 2025, 11:44 AM
