Komatsu Male Union 30Mm X 1.5 9236-30-30

Specifications

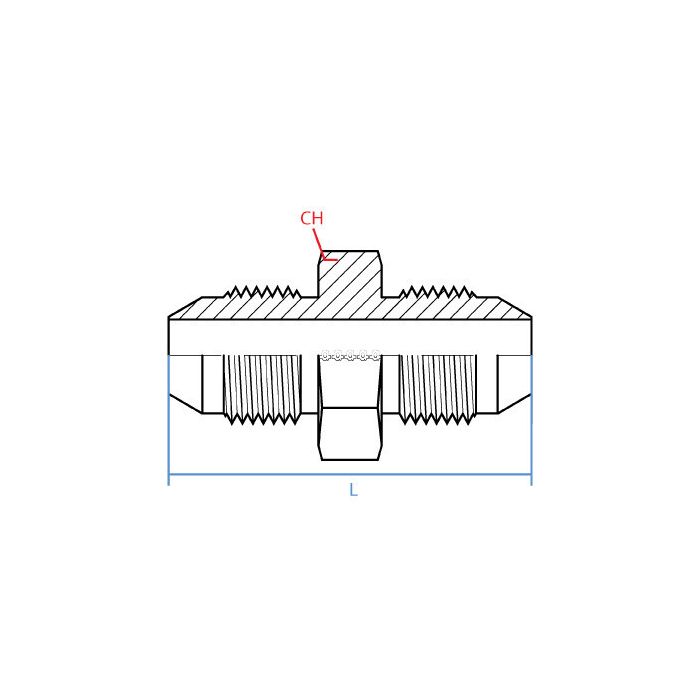

CH Width 35mm	L Length 68.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 1.5	Side 1 Gender M	Side 1 Size 30mm	Side 1 Type Komatsu	Side 2 Callout M30 X 1.5	Side 2 Gender M	Side 2 Size 30mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9236-30-30	Product Weight 0.55 lbs

Product Questions & Answers 3

Product Questions & Answers

Both sides on this union are 30mm Komatsu male, that right? Just want to make sure before I go pulling lines apart on this machine.

Question by: Hubert H on Aug 19, 2025, 7:57 PM

both ends are M30 x 1.5 Komatsu male, 30mm on each side. So you're looking at a true union, same fitting type and thread pitch all the way through. Good call double-checking before you start breaking connections loose.

Answer by: Customer Support on Aug 21, 2025, 7:54 AM

Will this Komatsu male union fit in place of my existing one if it also measures 30mm?

Question by: Debbie T on Dec 14, 2025, 9:46 PM

The 30mm size refers to the side 1 and side 2 size, with male genders, so as long as those match up, this should work for you.

Answer by: Customer Support on Dec 16, 2025, 6:29 PM

got a Komatsu line with M30 x 1.5 on both ends. is this union the same thread both sides or am i missin something

Question by: Neil J on Sep 1, 2025, 1:15 PM

Both sides are Komatsu type with an M30 x 1.5 callout, and both ends are male. Side 1 and side 2 are each listed as 30 mm size, so it is a straight male to male union with matching threads on both ends.

Answer by: Customer Support on Sep 2, 2025, 6:51 PM
