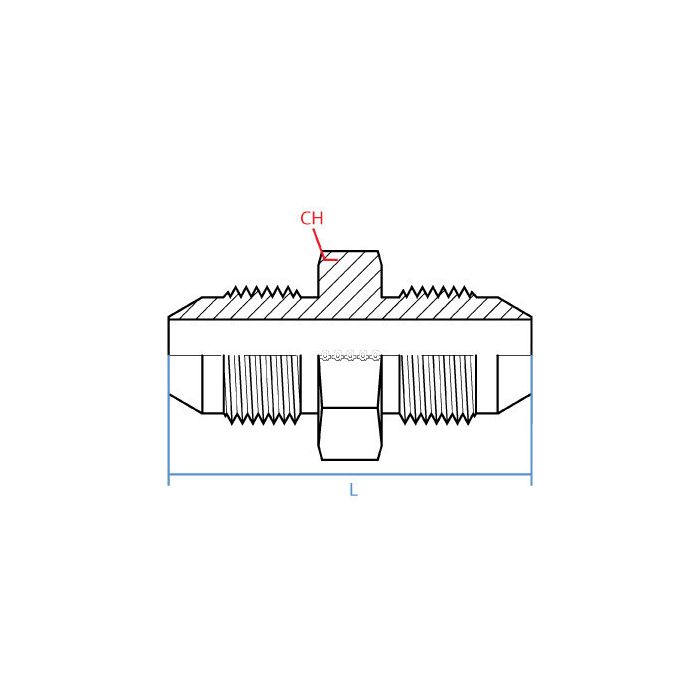

Komatsu Male Union 18Mm X 1.5

CH Width
24mm
L Length
45.7mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
M18 X 1.5
Side 1 Gender
M
Side 1 Size
18mm
Side 1 Type
Komatsu
Side 2 Callout
M18 X 1.5
Side 2 Gender
M
Side 2 Size
18mm
Side 2 Type
Komatsu
Alternate Part Numbers
Alternate Part Number C1GB54, Alternate Part Number MI-07713336, Alternate Part Number MINO-03671X00316
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9236-18-18
Product Weight
0.15 lbs

Product Questions & Answers

got a Komatsu port on both ends of a manifold block and need a straight union to connect them up -- this the right part for that?
Question by: Melvin P on Nov 1, 2025, 6:31 PM
For back-to-back Komatsu male connections running M18 x 1.5 threads on both sides, that's exactly what this union is built for. Both ends are male Komatsu at 18mm with a 1.5 pitch, so it bridges two female Komatsu ports in a straight line. The body is steel and comes in at 45.7mm long with a 24mm wrench flat, so make sure you've got enough clearance in the block to get a wrench on it.
Answer by: Customer Support on Nov 2, 2025, 8:43 PM
