Male Metric X Female Npt

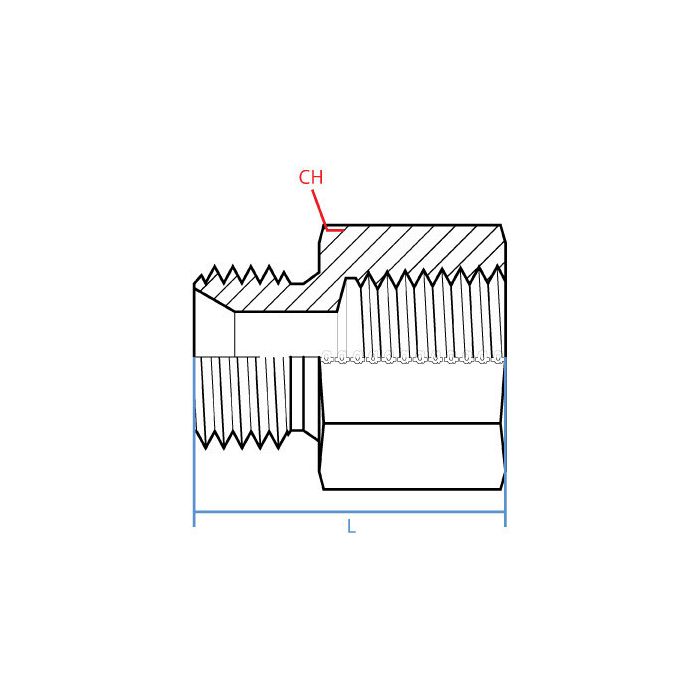

CH Width 38mm	L Length 42.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 1.5	Side 1 Gender M	Side 1 Size 30X1.5	Side 1 Type Metric	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Alternate Part Numbers Alternate Part Number 9635-30X1.5L2212	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-30X1.5-12	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a metric port on my hydraulic block and need to tie into a 3/4 NPT female line. This fitting handle that kind of crossover?

Question by: Floyd P on Jan 27, 2026, 1:09 PM

That's exactly what this adapter is built for. One end is M30 x 1.5 male metric, and the other is 3/4-14 NPTF female, so it bridges those two thread standards in a straight configuration. Steel construction, 42.6mm overall length, and a 38mm wrench flat make it straightforward to torque down during installation.

Answer by: Customer Support on Jan 28, 2026, 5:36 PM

So this here fitting has metric threads on one side and NPT on the other? Just want to make sure I'm understanding it right.

Question by: Larry G on Oct 7, 2025, 7:44 PM

That's correct. This Adaptall fitting adapts between metric and NPT threads, with a M30 X 1.5 male metric connection on one side and a 3/4 - 14 NPTF female connection on the other.

Answer by: Customer Support on Oct 9, 2025, 8:22 AM
