Male Metric X Female Npt 9235-27-12

Specifications

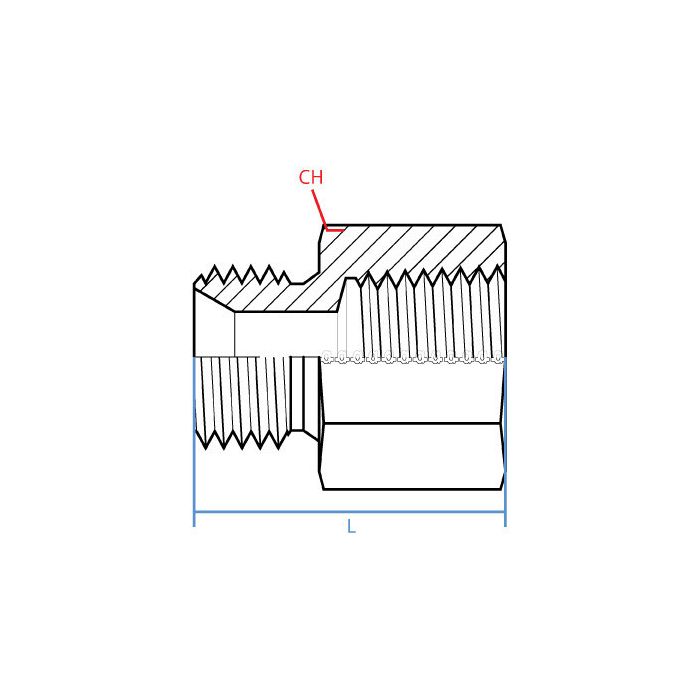

CH Width 35mm	L Length 49.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M27 X 2.0	Side 1 Gender M	Side 1 Size 27mm	Side 1 Type Metric	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-27-12	Product Weight 0.45 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this adapter hold up if I'm using it in a high-pressure system?

Question by: Todd B on Jan 10, 2026, 8:11 PM

Constructed from steel, this adapter is durable enough for use in high-pressure industrial applications.

Answer by: Customer Support on Jan 12, 2026, 6:42 AM

Got an M27 x 2.0 metric fitting on a hydraulic line and need to tie into a 3/4 NPT female port, this adapter do that job?

Question by: Hugh E on Mar 1, 2026, 4:57 PM

That's what this one's built for. One end is M27 x 2.0 male metric, the other is 3/4-14 NPTF female, so it bridges those two thread standards in a straight inline connection. Steel construction holds up well in high-pressure industrial setups, and at 49.4mm long with a 35mm wrench width, it installs clean with standard tooling. No modifications needed if your threads match up on both ends.

Answer by: Customer Support on Mar 3, 2026, 6:22 AM

got a hose end that’s M27 x 2.0 male and the valve port is 3/4-14 NPTF. is this the right adapter to tie those together?

Question by: Wes J on Feb 16, 2026, 2:21 PM

For that exact thread combo, it’s a straight steel adapter with an M27 x 2.0 male metric end and a 3/4-14 NPTF female end, so it’s meant to join those two standards in one inline connection.

Answer by: Customer Support on Feb 18, 2026, 6:42 AM
