Male Metric X Female Npt

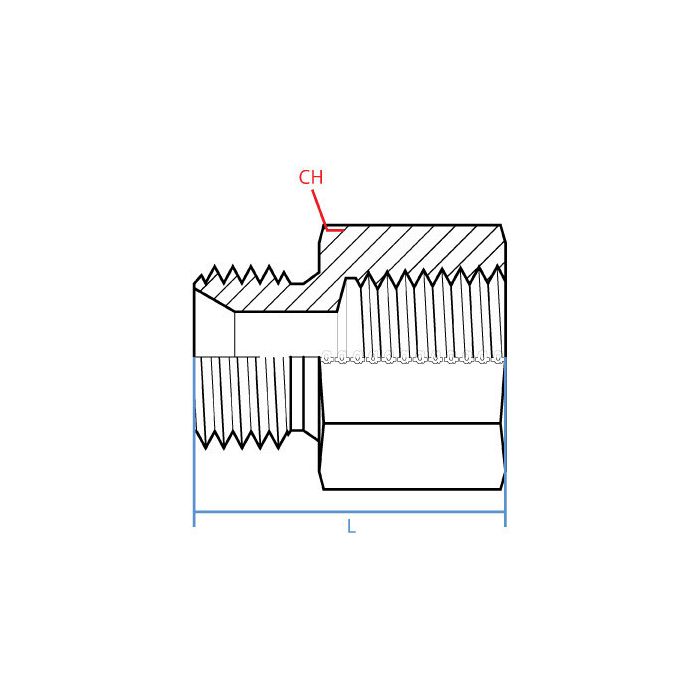

CH Width 19mm	L Length 27.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.0	Side 1 Gender M	Side 1 Size 12X1.0	Side 1 Type Metric	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-12X1.0-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

got a piece of equipment running M12 x 1.0 metric ports and I need to tie into a 1/4 inch NPT line, this the right adapter for that?

Question by: Vince M on Apr 22, 2025, 6:49 AM

That's what this one's built for. The male end is M12 x 1.0 metric and the female end accepts 1/4-18 NPTF, so it bridges those two thread standards in a straight-through configuration. Steel construction keeps it solid under the kind of working conditions you'd find in most hydraulic setups.

Answer by: Customer Support on Apr 23, 2025, 9:21 PM
