Male Metric X Female Npt 9235-12-02

Specifications

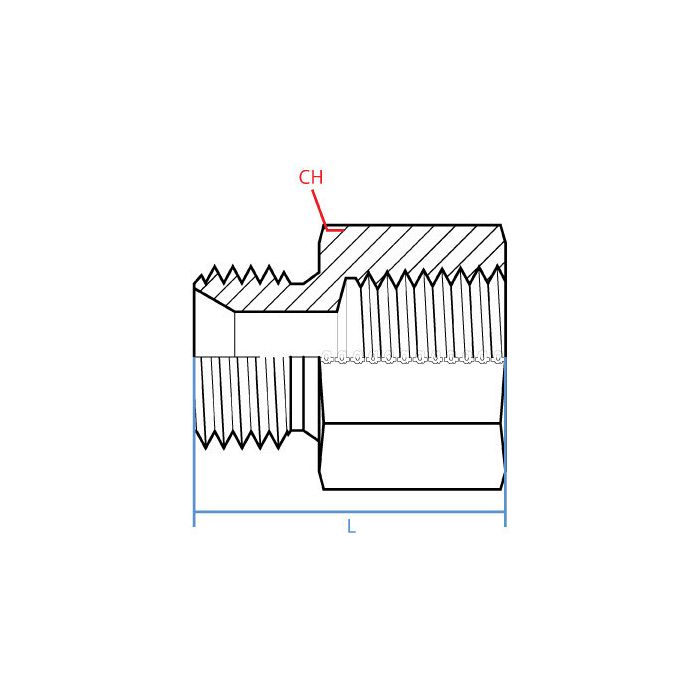

CH Width 16mm	L Length 23.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size 12mm	Side 1 Type Metric	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-12-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Hey, just want to make sure this here adapter will fit what I'm needing it for. Says it's M12 x 1.5 metric on one side and 1/8 - 27 NPTF on the other, is that right?

Question by: Freddie W on Feb 27, 2026, 9:41 PM

you got it. This adapter has a male M12 x 1.5 metric thread on one side and a female 1/8 - 27 NPTF thread on the other. That should make for a solid connection between the two different thread types.

Answer by: Customer Support on Mar 1, 2026, 9:37 AM

Got a hydraulic line coming off a metric port on a pump and need to tie into a 1/8 NPT female fitting downstream. this adapter gonna bridge that gap okay?

Question by: Brett M on Nov 4, 2025, 12:03 PM

That's exactly the situation this part is built for. One end is a male M12 x 1.5 metric thread, and the other is a female 1/8-27 NPTF, so it connects a metric male port directly to an NPT female fitting without any intermediate adapters or extra hardware. Straight configuration, no valves or adjustable ends involved, just a solid steel-to-steel connection between those two thread types.

Answer by: Customer Support on Nov 6, 2025, 9:16 AM

trying to hook a metric port up to a little 1/8 npt line. is this the right adapter for that

Question by: Rusty B on Jun 26, 2025, 6:19 PM

For that kind of mix-and-match connection, it’s meant to go from a male M12 x 1.5 metric thread on one side to a female 1/8 - 27 NPTF thread on the other, in a straight steel adapter.

Answer by: Customer Support on Jun 28, 2025, 5:49 PM
