Male Metric X Female Npt

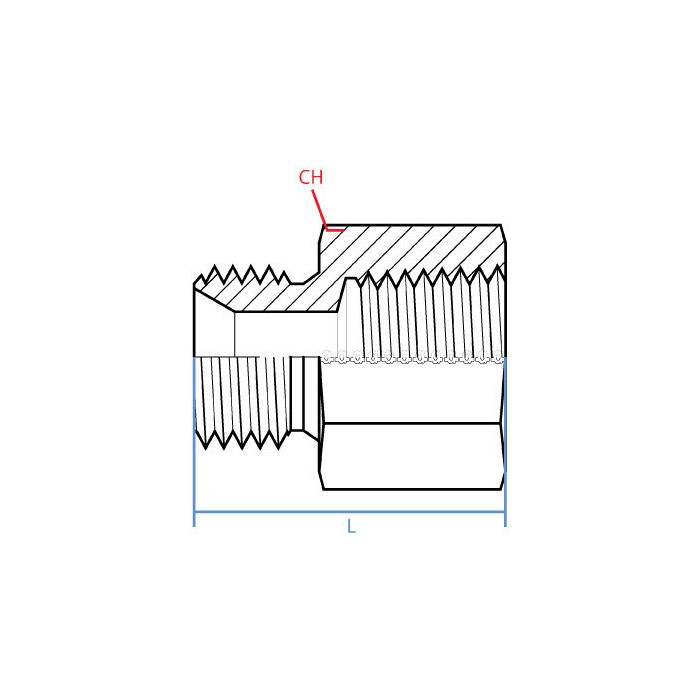

CH Width 16mm	L Length 30.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M10 X 1.5	Side 1 Gender M	Side 1 Size 10X1.5	Side 1 Type Metric	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-10X1.5-02	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

i’ve got a port that’s 1/8-27 nptf and the line i’m tying into is M10 x 1.5. is this the right straight adapter to marry those two?

Question by: Ray B on Oct 2, 2025, 11:08 AM

For connecting those two thread types, this adapter is set up exactly that way. Side 1 is a male metric M10 x 1.5, and side 2 is a female 1/8 inch 27 NPTF, in a straight steel body.

Answer by: Customer Support on Oct 3, 2025, 6:51 PM

Got an M10 x 1.5 port on a small hydraulic component and need to tie it into a 1/8" NPT line. This fitting do that job?

Question by: Neal S on Mar 6, 2026, 9:24 AM

That's what it's built for. One end is a male M10 x 1.5 metric thread, the other is a female 1/8-27 NPTF connection. Run your NPT line right into the female end and thread the male side into your metric port. Straight configuration, so no offset to work around. It's steel construction and comes from Adaptall, so the fit should be solid.

Answer by: Customer Support on Mar 8, 2026, 8:46 AM
