Male Metric Ll06 X Female Npt

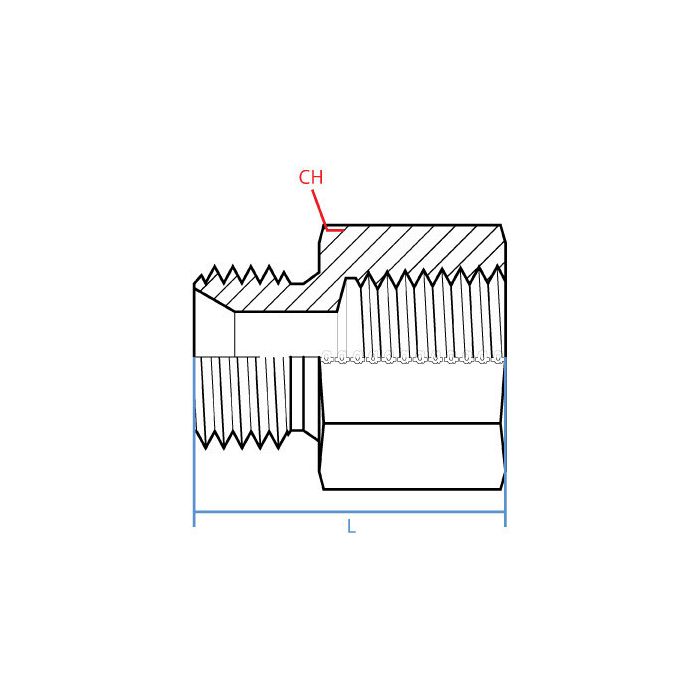

CH Width 19mm	L Length 31.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M10 X 1.0	Side 1 Gender M	Side 1 Size 10mm	Side 1 Type Metric	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-10-04	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 1/4 nptf hose end into a port that’s m10 x 1.0. is this the right little adapter?

Question by: Glen M on Jul 26, 2025, 7:13 AM

Use-case wise, it’s meant for exactly that kind of cross-thread hookup. One end is M10 x 1.0 male metric, and the other end is 1/4 - 18 NPTF female, so it lets a 1/4 NPTF male fitting thread into the adapter while the adapter threads into an M10 x 1.0 port.

Answer by: Customer Support on Jul 27, 2025, 2:29 PM

Will this fitting work to connect a metric hydraulic line to a standard NPT port on my equipment?

Question by: Judy W on Oct 30, 2025, 8:46 AM

This Adaptall adapter is indeed designed to connect a M10 x 1.0 male metric thread to a 1/4" female NPTF thread, which is a common need when working with hydraulic systems using both metric and NPT standards.

Answer by: Customer Support on Nov 1, 2025, 8:30 AM
