Male Metric X Female Npt

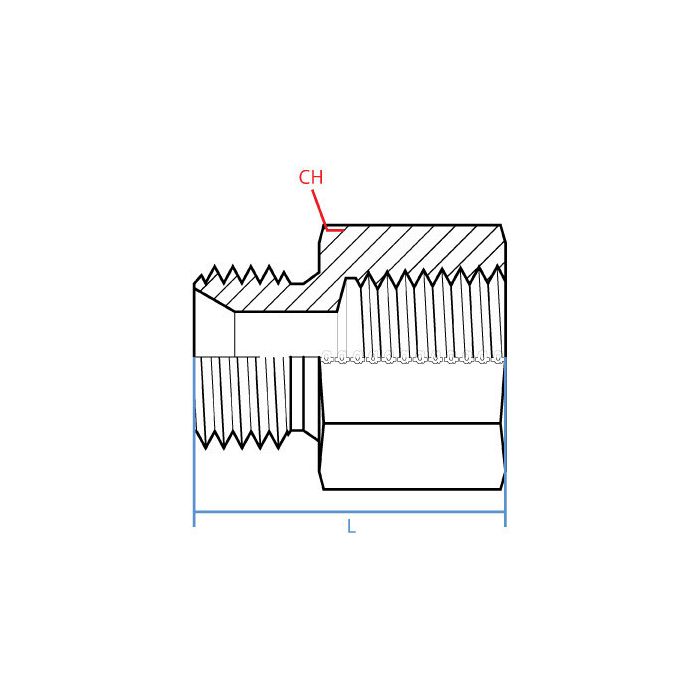

CH Width 14mm	L Length 26mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M6 X 1.0	Side 1 Gender M	Side 1 Size 6X1.0	Side 1 Type Metric	Side 2 Callout 1/8 - 27 NPTF	Side 2 Gender F	Side 2 Size 1/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9235-06X1.0-02	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

What kinda steel is this made from? Just need somethin' that can handle some pressure.

Question by: Floyd R on Jan 3, 2026, 8:58 PM

This adapter is made from steel, ensuring it can withstand demanding industrial environments and provide a secure connection.

Answer by: Customer Support on Jan 5, 2026, 2:15 PM

Got a metric fitting on my equipment and need to tie into a 1/8 NPT port, this thing gonna work for that?

Question by: Wade C on Jun 14, 2025, 8:44 PM

Yeah, that's exactly what this adapter is built for. One end is a Male M6 x 1.0 metric thread, and the other is a Female 1/8-27 NPTF. So if you've got a metric male connection on your equipment and a female NPT port on the other side, this bridges that gap straight through. No angled routing needed since it's a straight configuration.

Answer by: Customer Support on Jun 16, 2025, 6:45 AM
