Male Jic X Solid Fem. Komatsu 9230-16-33

Specifications

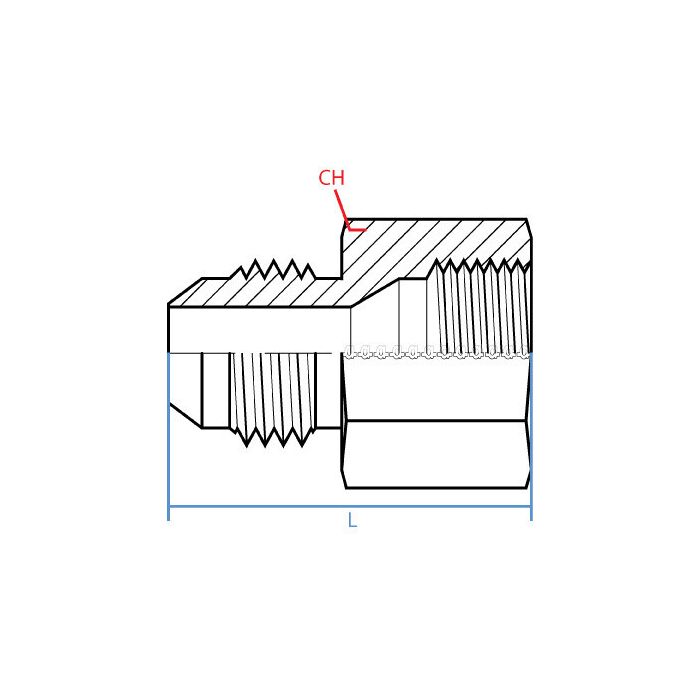

CH Width 41mm	L Length 54.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout 16mm	Side 2 Gender F	Side 2 Size 33mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9230-16-33	Product Weight 0.60 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 1 inch JIC, and the other side on the machine is komatsu 16mm. is this the straight adapter for that?

Question by: Wade K on Jul 18, 2025, 9:20 AM

For that kind of hookup, it matches a 1 inch male JIC on one end and a 16mm female Komatsu connection on the other, in a straight steel body.

Answer by: Customer Support on Jul 19, 2025, 9:51 AM

Got a Komatsu machine that takes a 16mm female fitting and need to tie it into a 1" JIC line. This adapter gonna bridge that gap straight up?

Question by: Hank H on Aug 7, 2025, 12:32 PM

Yeah, that's exactly what it's built for. One end is a 1-inch male JIC with a 1-5/16-12 UN thread, and the other side is a solid female Komatsu at 16mm. The connection is straight, no offset, so it threads right in without any angular adjustment needed. Steel construction, 54.5mm overall length, and a 41mm wrench flat on the JIC side to give you a solid grip during installation.

Answer by: Customer Support on Aug 9, 2025, 6:26 AM

Will this here adapter fit up with my Komatsu equipment alright?

Question by: Hugh H on Oct 14, 2025, 12:58 PM

This straight steel adapter is designed to connect directly to a 16mm female Komatsu connection.

Answer by: Customer Support on Oct 16, 2025, 7:16 AM
