Male Jic X Solid Fem. Komatsu

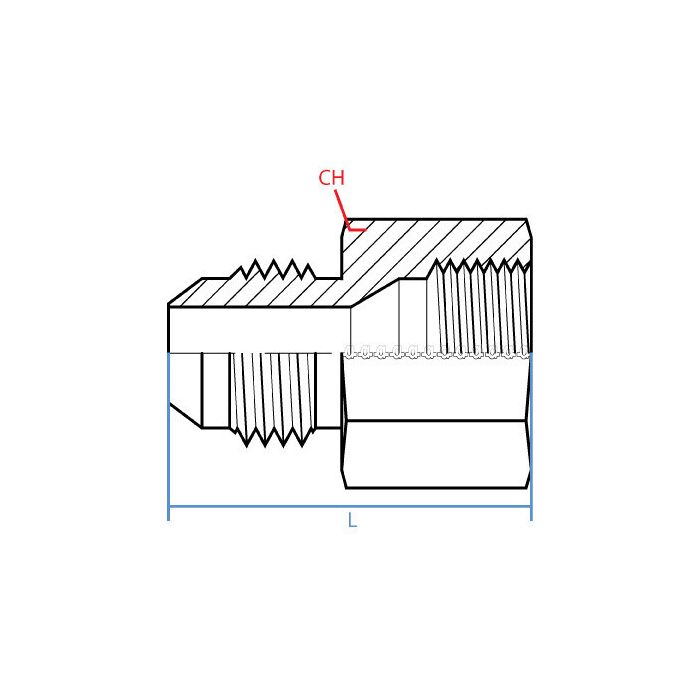

CH Width 35mm	L Length 45.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 15mm	Side 2 Gender F	Side 2 Size 30mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9230-12-30	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 1-1/16 - 12 UN male JIC, will this adapter mate it up to a 15mm female Komatsu port?

Question by: Gene A on Oct 25, 2025, 8:15 PM

It bridges a 1-1/16 - 12 UN male JIC connection on one side to a 15mm female Komatsu connection on the other, in a straight steel adapter.

Answer by: Customer Support on Oct 27, 2025, 7:15 AM

Got a Komatsu port on a piece of equipment I'm trying to tie into a JIC line, this the right adapter for that job?

Question by: Sheila F on Oct 26, 2025, 12:44 PM

That's what this one's built for. One end is a 3/4" male JIC fitting with a 1-1/16 - 12 UN thread, and the other side is a solid female Komatsu at 15mm. Run it straight between those two connection types and you're good to go.

Answer by: Customer Support on Oct 27, 2025, 4:56 PM

What kinda steel is this made outta? Need somethin' that can handle some pressure.

Question by: Scott R on Feb 19, 2026, 6:56 AM

Crafted from durable steel, this adapter is built to provide robust performance in demanding hydraulic applications.

Answer by: Customer Support on Feb 20, 2026, 8:28 PM
