Male Jic X Solid Fem. Komatsu

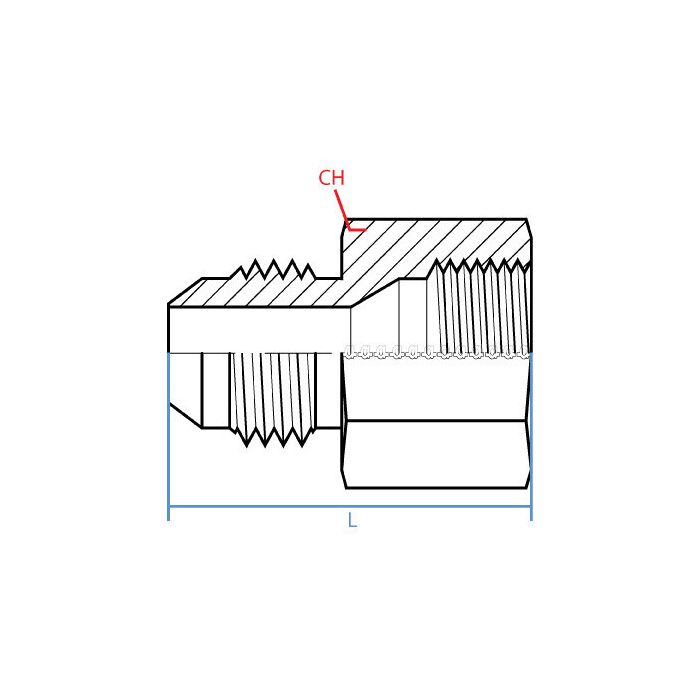

CH Width 24mm	L Length 35.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 10mm	Side 2 Gender F	Side 2 Size 18mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9230-06-18	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to match up fittings here. Is this a straight adapter from a 9/16-18 JIC male to a 10mm Komatsu female?

Question by: Neal T on Jan 18, 2026, 12:18 PM

For fit checks, it is a straight steel connector with a male JIC end called out as 9/16-18 UNF (3/8 inch size) and a female Komatsu end called out as 10mm (18mm size).

Answer by: Customer Support on Jan 19, 2026, 2:40 PM

So, this is a straight connector, right? Just wanna make sure before I order.

Question by: Eddie R on Apr 19, 2025, 5:33 PM

Yes, this Adaptall America connector has a straight shape, which should make it suitable for tight spots. It is made of steel.

Answer by: Customer Support on Apr 21, 2025, 6:53 AM

Customers Who Bought This Item Also Bought

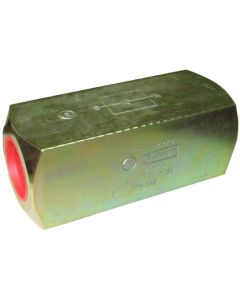

RV Series Inline Check Valve, SAE-8 Ports, 7 PSI Cracking Pressure, Up To 7250.00 PSI
