Male Jic X Solid Fem. Komatsu 9230-06-16

Specifications

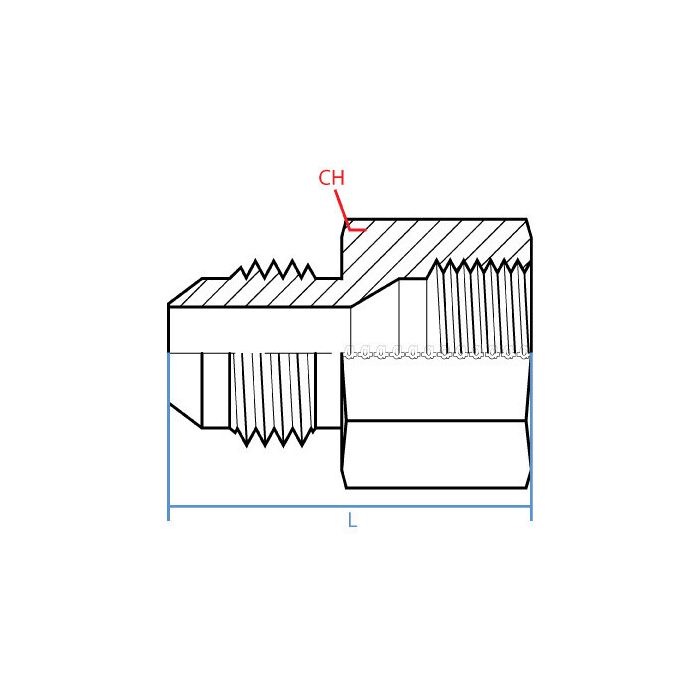

CH Width 22mm	L Length 34.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 14mm	Side 2 Gender F	Side 2 Size 16mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9230-06-16	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up okay in a hydraulic system that runs pretty hot, or do I need to look for something with better heat resistance?

Question by: Harold C on Dec 6, 2025, 11:44 AM

The fitting's steel construction is durable and should withstand normal hydraulic operating temperatures. However, if your system consistently runs at very high temperatures, it would be best practice to consult the hydraulic system manufacturer or a specialist to ensure compatibility and optimal performance.

Answer by: Customer Support on Dec 8, 2025, 9:25 AM

Got a Komatsu machine and need to tie in a JIC line, this fitting got the right threads to make that work?

Question by: Gary M on May 18, 2025, 11:22 AM

Yeah, that's exactly what this one's built for. One end is a 9/16-18 UNF male JIC thread, and the other is a 14mm female Komatsu thread. So if your hose or line terminates in a standard 3/8" JIC fitting and your Komatsu port is the 14mm female, you've got a direct match. Steel construction, straight profile, and it's a solid non-adjustable fitting, so once it's torqued down it stays put.

Answer by: Customer Support on May 19, 2025, 2:45 PM
