Male Jic X Solid Fem. Komatsu

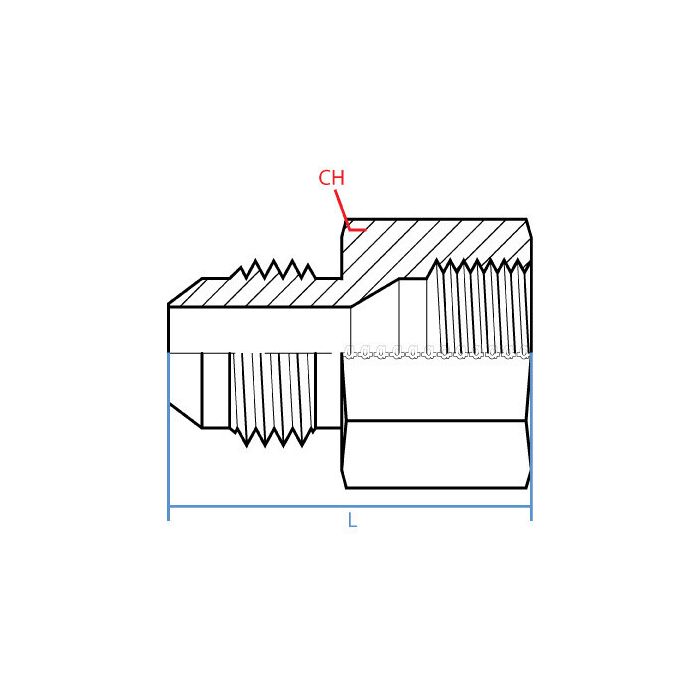

CH Width 19mm	L Length 32.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout 12mm	Side 2 Gender F	Side 2 Size 14mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9230-04-14	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to replace an adapter on a hose, is this the one with 7/16-20 jic male on one end and a 12mm komatsu female on the other?

Question by: Dwight P on Jul 19, 2025, 5:09 PM

You are looking at a straight steel adapter with a male JIC end called out as 7/16-20 UNF (1/4 inch size) on side 1, and a solid female Komatsu end called out as 12 mm (14 mm size) on side 2.

Answer by: Customer Support on Jul 21, 2025, 8:53 AM

got a Komatsu port on a piece of equipment and need to run a JIC line off it, this a straight adapter or does it got some kind of angle to it?

Question by: Ray H on Jul 20, 2025, 11:10 AM

Straight through, no angle. The 9230-04-14 runs a male 7/16-20 UNF JIC on one end and a female 12mm Komatsu on the other, all in a direct inline configuration. At 32.3mm long with a 19mm wrench flat, it sits pretty compact in tight spots. If your port is a solid female Komatsu at 14mm, this one drops right in.

Answer by: Customer Support on Jul 21, 2025, 9:41 PM
