Nissan Mjic X 50* Male Metric 9228-06-16

Specifications

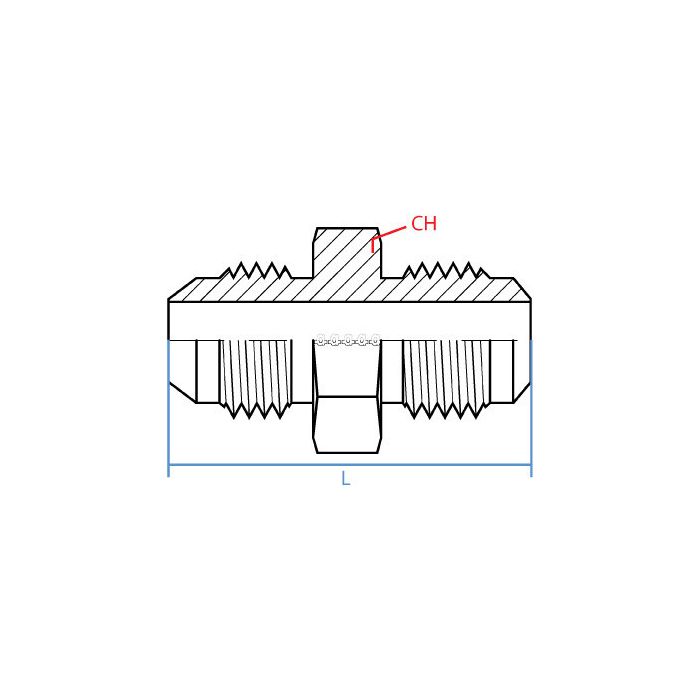

CH Width 20.5mm	L Length 40.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 12mm	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Nissan	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9228-06-16	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

fitting's got 12mm on one side and 9/16-18 UNF on the other -- trying to connect a Nissan hydraulic line to a JIC fitting on a pump. this the right one for that job?

Question by: Steve M on Apr 21, 2025, 8:51 PM

That's what this piece is built for. One end is 12mm male Nissan thread, the other is 9/16-18 UNF male JIC at 3/8" size. Straight body, steel construction. If your Nissan line and JIC port match those specs, you've got the right adapter.

Answer by: Customer Support on Apr 23, 2025, 4:38 PM

Will this fitting work to connect a Nissan line to a JIC line?

Question by: Ronnie W on Jan 5, 2026, 9:58 PM

This Adaptall fitting is designed to connect Nissan and JIC hydraulic lines, with a 12mm male Nissan thread on one side and a 9/16-18 UNF male JIC thread on the other.

Answer by: Customer Support on Jan 7, 2026, 3:29 PM

trying to hook a Nissan line to a JIC hose, is this the straight adapter that goes between them?

Question by: Kirk F on Mar 12, 2026, 9:53 PM

For connecting those two styles, it’s a straight steel Adaptall fitting with Nissan male threads on one side and male JIC on the other. Side 1 is a 9/16-18 UNF male JIC in 3/8 inch size, and side 2 is a 12 mm male Nissan thread with a 16 mm size.

Answer by: Customer Support on Mar 14, 2026, 6:22 AM
