90* Male Jis X Male Bspt Elbow

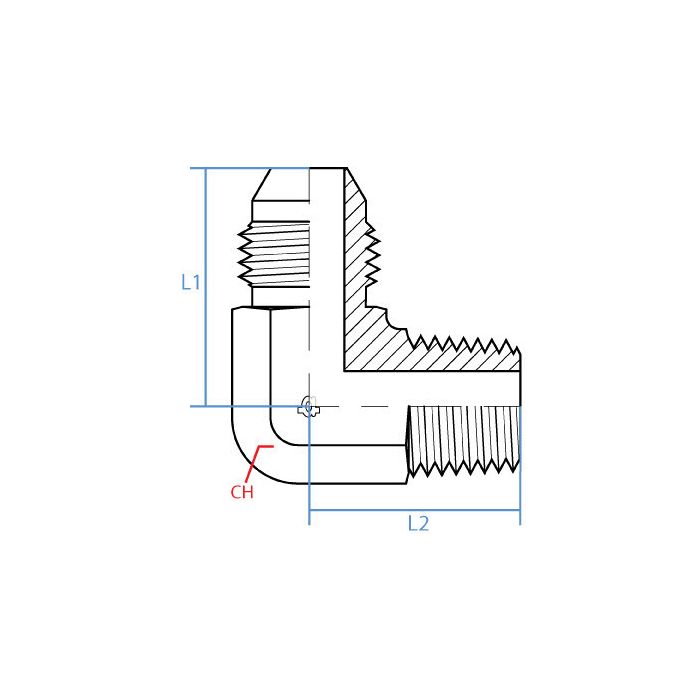

CH Width 22mm	L1 Length 34mm	L2 Length 31mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jis	Side 2 Callout R 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9224-08-08	Product Weight 0.45 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting work with regular NPT threads, or is it strictly for BSPT?

Question by: Dwight T on Apr 22, 2025, 11:07 AM

This elbow has a male BSPT connection on one side, and a male JIS connection on the other; it's not compatible with NPT threads.

Answer by: Customer Support on Apr 24, 2025, 6:34 AM

Got a piece of equipment running JIS fittings on one end and BSPT on the other, does this elbow handle both those thread types in the same fitting?

Question by: Floyd S on Jun 25, 2025, 3:48 PM

That's what it does. One side is male JIS with a G 1/2 - 14 thread, and the other is male BSPT with an R 1/2 - 14 thread. Both sides are 1/2" size, so you're getting a direct 90-degree connection between those two standards without needing a separate adapter in between. Steel construction on the whole thing.

Answer by: Customer Support on Jun 26, 2025, 4:08 PM
