90* Male Jis X Male Bspt Elbow 9224-06-06

Specifications

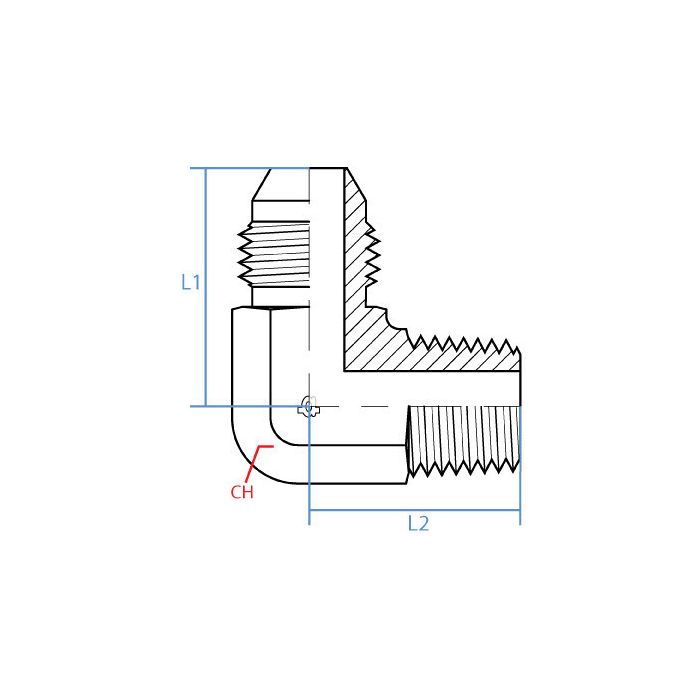

CH Width 19mm	L1 Length 28mm	L2 Length 27mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jis	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Alternate Part Numbers Alternate Part Number MI-02479796, Alternate Part Number MINO-00028X50905	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9224-06-06	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a fitting out, is this elbow actually 3/8 JIS on one end and 3/8 BSPT on the other?

Question by: Sheila M on Mar 25, 2026, 6:36 AM

For a 90 degree direction change, it mates a G 3/8 - 19 Male JIS on one side to an R 3/8 - 19 Male BSPT on the other, and both ends are male.

Answer by: Customer Support on Mar 26, 2026, 7:05 PM

Will this elbow hold up okay in a hydraulic system for farm equipment?

Question by: Ross J on Oct 16, 2025, 7:19 AM

Constructed from durable steel, this elbow adapter is designed to provide reliable strength and longevity, even in demanding conditions, making it suitable for hydraulic systems in farm equipment.

Answer by: Customer Support on Oct 17, 2025, 11:48 AM

Got a hydraulic line that needs to make a hard turn where JIS and BSPT fittings meet up, this a 3/8 on both ends?

Question by: Dwight T on Dec 4, 2025, 9:13 AM

Both sides are 3/8 inch, yes. One end carries a G 3/8-19 Male JIS thread and the other is R 3/8-19 Male BSPT, so it bridges those two thread standards at the same size while giving you that 90-degree change in direction. Steel construction on this one, made by Adaptall under part number 9224-06-06.

Answer by: Customer Support on Dec 6, 2025, 6:31 AM
