90* Male Jis X Male Bspt Elbow 9224-04-04

Specifications

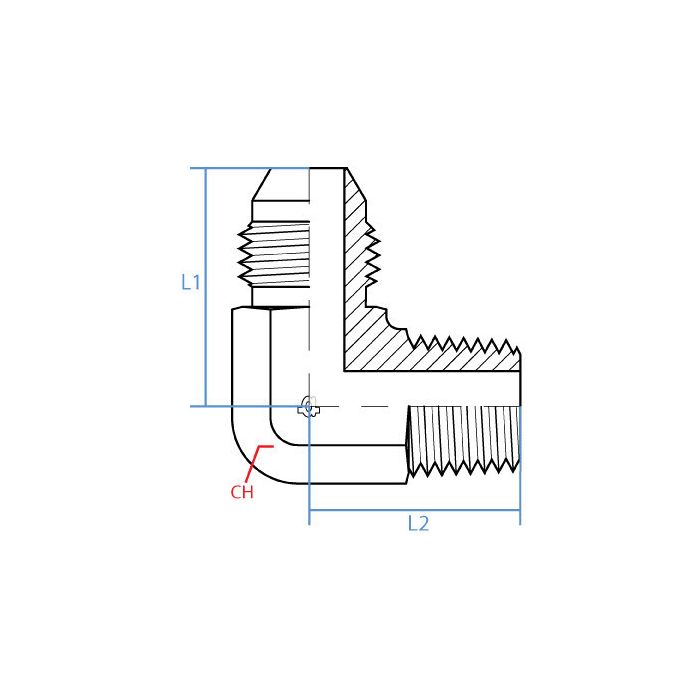

CH Width 14mm	L1 Length 25mm	L2 Length 26mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jis	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9224-04-04	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

Just making sure, this here elbow will let me hook up a JIS fitting to a BSPT one, right? Both are 1/4 inch.

Question by: Randy W on Sep 19, 2025, 6:22 AM

That's correct. This 90° elbow adapter is designed specifically to connect a 1/4" Male JIS port to a 1/4" Male BSPT port.

Answer by: Customer Support on Sep 20, 2025, 10:29 AM

Got a line coming off a JIS port and need to make a 90-degree turn into a BSPT fitting, this the right adapter for that?

Question by: Roy P on Oct 30, 2025, 6:46 PM

That's what this one's built for. One end threads into a 1/4" Male JIS port using a G 1/4-19 thread, and the other end connects to a 1/4" Male BSPT fitting with an R 1/4-19 thread. The 90-degree elbow lets you make that right-angle turn without bending your line or fighting for clearance. Both sides are the same 1/4" nominal size, so the flow path stays consistent from one end to the other.

Answer by: Customer Support on Nov 1, 2025, 8:37 AM

trying to hook a 1/4 jis port to a 1/4 bspt port but i need to turn the line 90 degrees. is that what this elbow is for?

Question by: Gary H on May 30, 2025, 10:17 AM

For tying two different thread standards together at a right angle, this adapter does exactly that. One end is a 1/4 inch male JIS with a G 1/4-19 callout, and the other end is a 1/4 inch male BSPT with an R 1/4-19 callout, so it works when you have JIS on one side and BSPT on the other.

Answer by: Customer Support on May 31, 2025, 3:56 PM
