Male Jis X Male Bspt 9223-04-06

Specifications

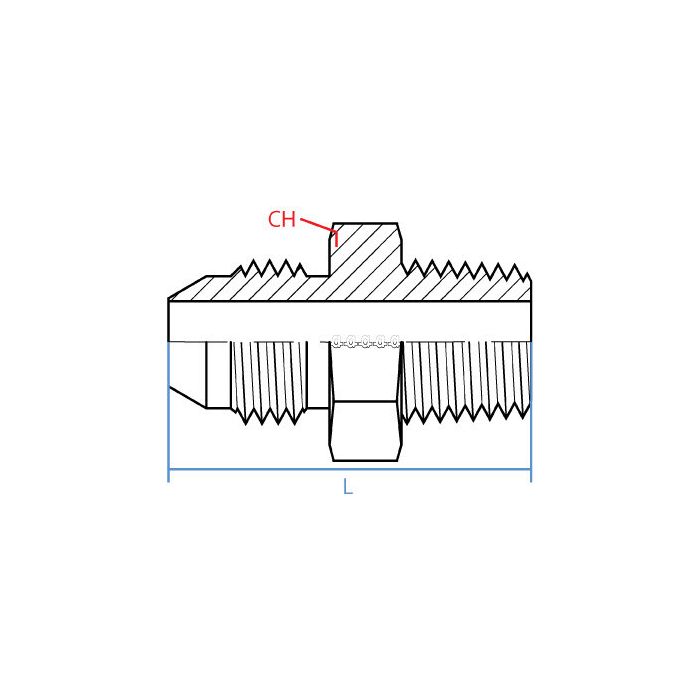

CH Width 19mm	L Length 42.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jis	Side 2 Callout R 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9223-04-06	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment with a JIS port and I need to tie it into a line that's got BSPT fittings on it. This the right part to make that happen, or do I need something in between?

Question by: Phil M on Mar 22, 2026, 4:50 PM

That's exactly what this fitting is built for. One end is 1/4" Male JIS (G 1/4 - 19) and the other is 3/8" Male BSPT (R 3/8 - 19), so it bridges those two thread standards directly with no intermediate adapter needed. It's steel, straight configuration, 42.6mm long with a 19mm hex for wrenching. If your ports match those specs, you're good to go.

Answer by: Customer Support on Mar 24, 2026, 11:56 AM

Will this adapter hold up okay in a hydraulic system on a tractor, or is it more for light-duty stuff?

Question by: Terry W on Apr 28, 2025, 1:42 PM

This adapter's steel construction should be suitable for typical hydraulic line pressures encountered in both industrial and mobile equipment applications, including tractors.

Answer by: Customer Support on Apr 29, 2025, 7:34 PM

got a port that’s G 1/4-19 on one side and i need to tie into an R 3/8-19 line, is this the right adapter?

Question by: Travis R on Mar 13, 2026, 4:50 PM

For joining those two thread standards directly, it matches what you described. One end is a 1/4 inch Male JIS thread called out as G 1/4 - 19, and the other end is a 3/8 inch Male BSPT called out as R 3/8 - 19, in a straight steel adapter.

Answer by: Customer Support on Mar 15, 2026, 8:58 AM
