Male Jis X Male Bspt 9223-04-04

Specifications

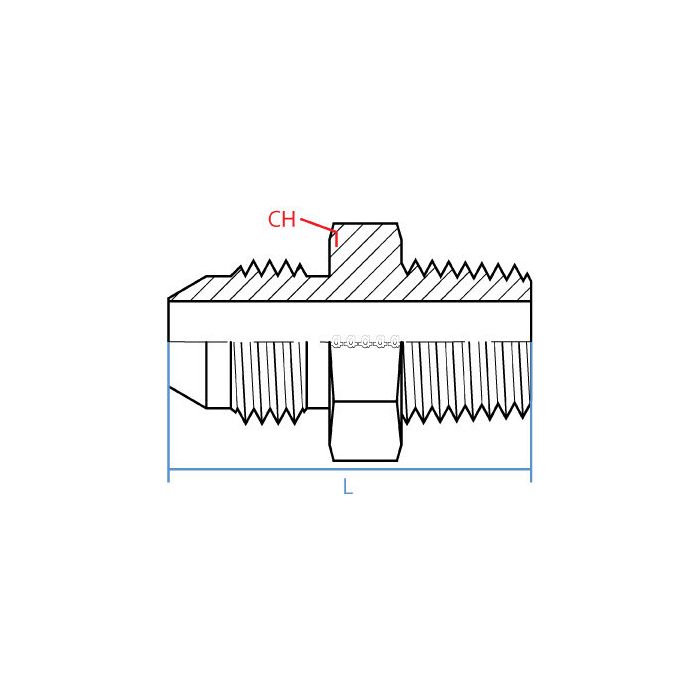

CH Width 16mm	L Length 42.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jis	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9223-04-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

Is this fitting made outta steel?

Question by: Chad C on Dec 11, 2025, 4:13 PM

It is indeed; this Adaptall fitting is manufactured from steel for added durability.

Answer by: Customer Support on Dec 13, 2025, 1:00 PM

What exactly is the difference between JIS and BSPT threads, and is this fitting meant to bridge the two?

Question by: Merle R on Dec 24, 2025, 6:29 PM

JIS (Japanese Industrial Standard) and BSPT (British Standard Pipe Tapered) are two separate thread standards that don't mate directly with each other. This adapter has a 1/4" male JIS port on one end, called out as G 1/4 - 19, and a 1/4" male BSPT port on the other, called out as R 1/4 - 19. So yeah, it's purpose-built to connect equipment or lines that use one standard to fittings or ports that use the other. Both sides are male, so you'd need female receivers on whatever you're connecting it to on each end.

Answer by: Customer Support on Dec 26, 2025, 7:51 AM

trying to hook a JIS port to BSPT, is this the straight adapter with 1/4 on both ends?

Question by: Ralph M on May 9, 2025, 11:02 AM

Built for that exact mix, it has a 1/4 inch male JIS on one side (G 1/4 - 19) and a 1/4 inch male BSPT on the other (R 1/4 - 19), in a straight steel body.

Answer by: Customer Support on May 11, 2025, 6:50 AM
