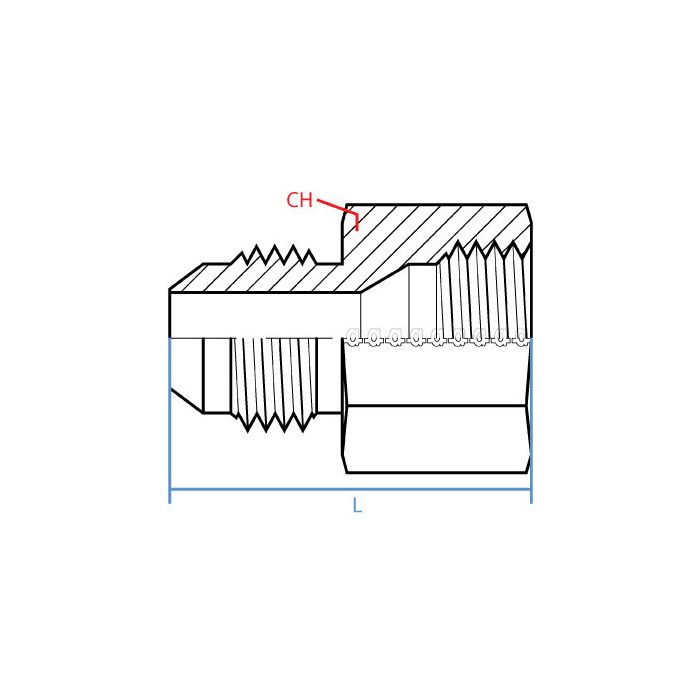

Male Jic X Solid Female Jis

CH Width 35mm	L Length 52.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Jis	Alternate Part Numbers Alternate Part Number C1GB52, Alternate Part Number MI-02116367, Alternate Part Number MINO-03671J02706	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9220-12-12	Product Weight 0.45 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a JIC hose up to a JIS port, is this the right adapter?

Question by: Rhonda H on Jan 11, 2026, 1:47 PM

Built for adapting between standards, it has a male JIC 37 degree flare on one end and a solid female JIS connection on the other, so it is meant for exactly that kind of JIC to JIS hookup.

Answer by: Customer Support on Jan 13, 2026, 6:39 AM

fitting's a straight shot, right? no angle or swivel to it?

Question by: Randy S on Oct 5, 2025, 9:20 PM

Correct, it runs straight through with no offset or rotation. One end is a male JIC 37-degree flare in 3/4" with a 1-1/16-12 UN thread, and the other is a solid female JIS connection, also 3/4". Solid female means there's no swivel movement on the JIS side, so both connections are fixed in place once installed.

Answer by: Customer Support on Oct 7, 2025, 6:45 AM
