M.Jic X F.Flat-Face Bspp Swiv.

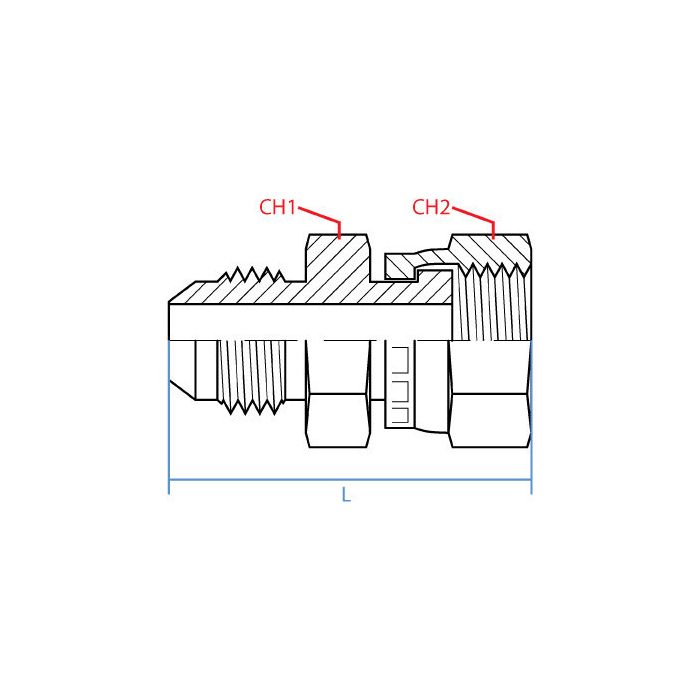

CH1 Width 28.5mm	CH2 Width 32mm	L Length 48.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Hiab	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9210-08-12	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 3/4 - 16 UNF JIC on one side and a 3/4 flat-face BSPP swivel on the other. Is this the right adapter for that?

Question by: Bobby J on Apr 6, 2026, 8:51 AM

Match-up wise, it lines up with a male JIC on Side 1 using 3/4 - 16 UNF threads, and a female flat-face BSPP swivel on Side 2 sized for a 3/4 inch connection.

Answer by: Customer Support on Apr 8, 2026, 6:52 AM

got a line running 3/4 inch BSPP on one end and JIC on the other, this thing gonna bridge that gap without needing extra fittings in between?

Question by: Melvin W on Sep 9, 2025, 11:40 AM

That's exactly what this adapter is built for. One end is a male JIC at 3/4-16 UNF and the other is a female flat-face BSPP swivel at 3/4 inch, so you're connecting those two thread standards directly with a single piece. The swivel on the BSPP side also helps a good bit during installation since you can rotate it to get the line aligned without fighting the whole assembly. Steel construction, 48.9mm overall length, keeps things tight in cramped hydraulic connections runs.

Answer by: Customer Support on Sep 11, 2025, 6:39 AM
