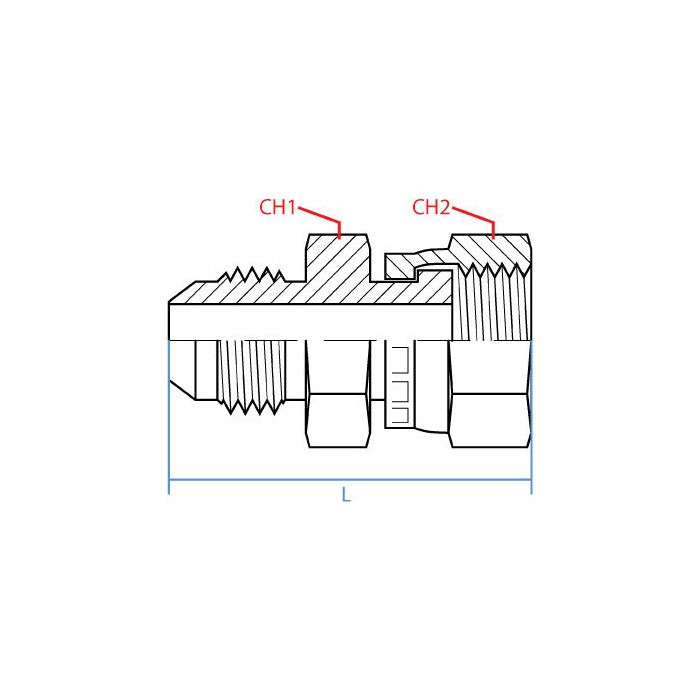

M.Jic X F.Flat-Face Bspp Swiv.

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Hiab	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9210-06-08	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 3/8 jic hose to a 1/2 flat face bspp port, is this the right adapter?

Question by: Bobby S on Dec 13, 2025, 1:25 PM

For that mix of ends, it matches up. Side 1 is a male JIC 37 degree flare in 3/8 size with a 9/16-18 UNF thread, and side 2 is a 1/2 female flat-face BSPP swivel, so it bridges a JIC hose end to a flat-face BSPP port.

Answer by: Customer Support on Dec 15, 2025, 6:17 AM

What size threads does this thing have? I get kinda confused by the fractions.

Question by: Tony B on Nov 2, 2025, 6:55 PM

It uses a 9/16-18 UNF thread on the male JIC side, which is the 3/8" size. The female flat-face BSPP swivel end is 1/2".

Answer by: Customer Support on Nov 4, 2025, 1:34 PM
