Male Jic X Metric Standpipe

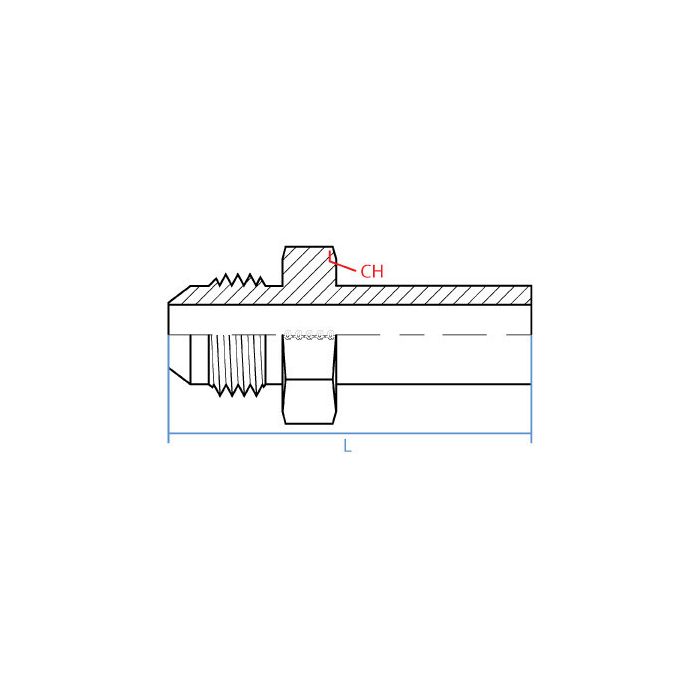

CH Width 51mm	L Length 86.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout 42mm	Side 2 Gender F	Side 2 Size 42mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-24-42	Product Weight 1.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up alright in a hydraulic setup on farm equipment?

Question by: Wes H on Dec 17, 2025, 8:42 AM

Steel construction gives this fitting the durability needed for demanding hydraulic environments, so it should be suitable for farm equipment applications. It's designed to provide a reliable transition between JIC and metric DIN standpipe connections.

Answer by: Customer Support on Dec 19, 2025, 6:59 AM

trying to hook a 1-1/2 JIC hose into a 42mm DIN standpipe port, is that what this fitting is for?

Question by: Shane J on Jul 18, 2025, 9:36 AM

Built for that exact transition, it has a 1-1/2 inch male JIC end with 1-7/8-12 UN threads on one side and a 42 mm female DIN standpipe connection on the other, all in a straight steel body.

Answer by: Customer Support on Jul 19, 2025, 8:47 PM
