Male Jic X Metric Standpipe

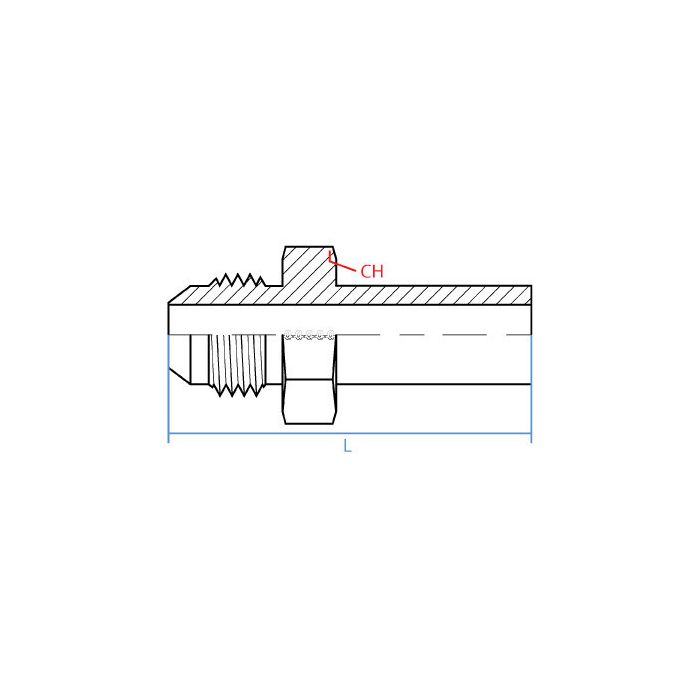

CH Width 44.5mm	L Length 90.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout 38mm	Side 2 Gender F	Side 2 Size 38mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-20-38	Product Weight 0.90 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line running 1-1/4" JIC on one end and the other side is a 38mm DIN standpipe fitting, does this adapter handle that crossover direct, or do I need something in between?

Question by: Tony M on Oct 14, 2025, 10:12 AM

That's exactly what this fitting is built for. One end is a 1-1/4" male JIC with a 1-5/8-12 UN thread, and the other connects to a 38mm female DIN standpipe. Straight configuration, no intermediate pieces needed. Adaptall makes it as a single-body steel adapter, so you're going directly from your JIC circuit into the metric DIN standpipe interface without stacking fittings.

Answer by: Customer Support on Oct 15, 2025, 12:48 PM

I need to connect a JIC fitting to a metric standpipe. Will this do the trick without needing a bunch of extra adapters?

Question by: Denise W on Aug 24, 2025, 6:36 PM

Yes, this male JIC to metric standpipe adapter directly connects a 1-1/4" male JIC to a 38mm female DIN standpipe. It's designed to simplify your hydraulic connections when you're working with both inch and metric systems.

Answer by: Customer Support on Aug 26, 2025, 2:33 PM
