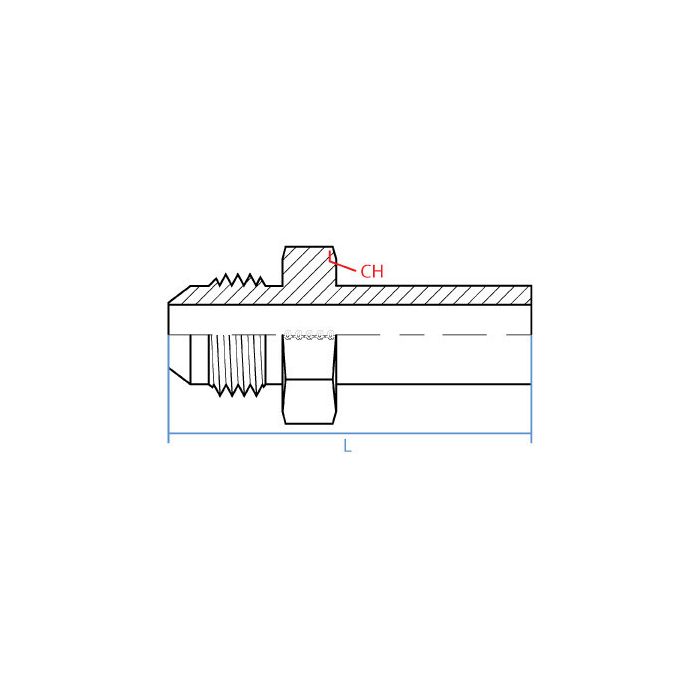

Male Jic X Metric Standpipe

CH Width 44.5mm	L Length 90.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout 35mm	Side 2 Gender F	Side 2 Size 35mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-20-35	Product Weight 0.90 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap a fitting out, is this the straight one that goes from a 1-1/4 JIC male to a 35mm DIN standpipe female?

Question by: Diane L on Dec 20, 2025, 5:37 PM

On the JIC end you get a 1-1/4 inch male with a 1-5/8 - 12 UN thread callout, and the other side is a 35 mm female DIN standpipe connection with a 35 mm callout. It is a straight steel Adaptall fitting.

Answer by: Customer Support on Dec 21, 2025, 5:54 PM
