Male Jic X Metric Standpipe

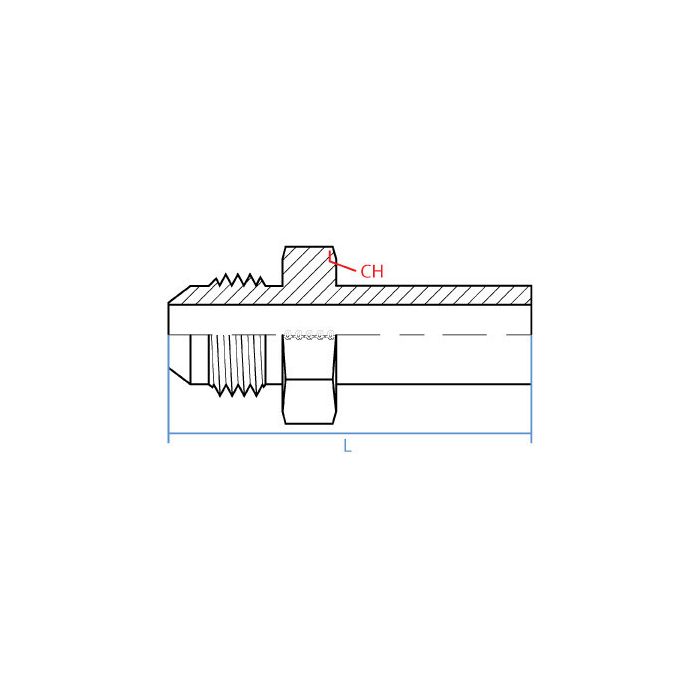

CH Width 35mm	L Length 68.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout 25mm	Side 2 Gender F	Side 2 Size 25mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-16-25	Product Weight 0.45 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 1-5/16 - 12 UN JIC male, will this mate up to a 25mm DIN standpipe female on the other side?

Question by: Hugh A on Jul 12, 2025, 4:56 PM

On the JIC side, you are getting a 1 inch male JIC with a 1-5/16 - 12 UN thread callout, and the other end is a 25mm DIN standpipe female. It is a straight steel adapter meant to bridge those two connection types.

Answer by: Customer Support on Jul 14, 2025, 6:52 AM

Got a 25mm DIN standpipe port on a manifold block and need to tie it into a JIC hose line. This fitting work for that?

Question by: Shane T on Jul 27, 2025, 6:11 AM

That's exactly the kind of crossover connection this fitting handles. One end is a 1 inch JIC male, threaded at 1-5/16-12 UN, and the other end accepts a 25mm DIN standpipe female connection. Steel construction, straight body, 68.8mm overall length. As long as your manifold port matches that 25mm DIN standpipe spec, you're in good shape.

Answer by: Customer Support on Jul 29, 2025, 6:49 AM
