Male Jic X Metric Standpipe 9200-12-25

Specifications

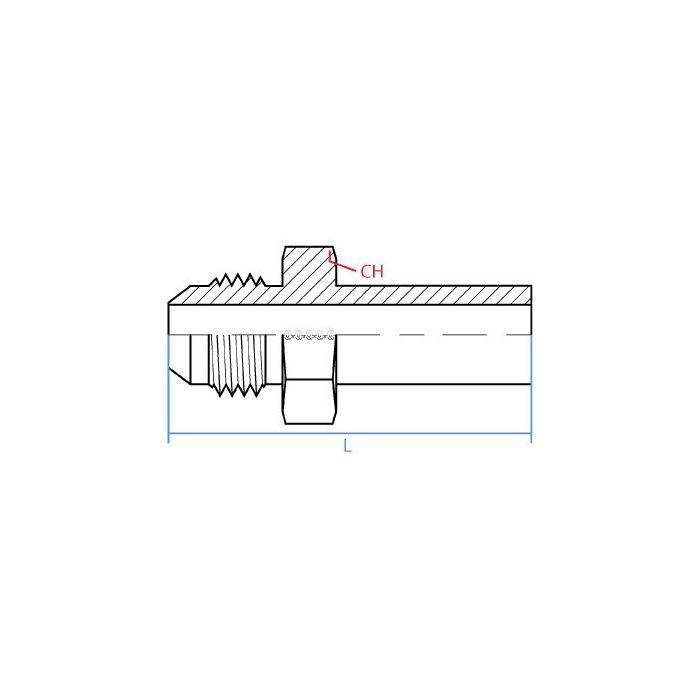

CH Width 32mm	L Length 65mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 25mm	Side 2 Gender F	Side 2 Size 25mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-12-25	Product Weight 0.35 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 3/4 JIC male, will this fitting match up to that or am i off a size

Question by: Chad T on Feb 22, 2026, 2:25 PM

On the JIC side, it’s a 3/4 inch male JIC with a 1-1/16 - 12 UN thread callout, so it matches a 3/4 JIC male connection.

Answer by: Customer Support on Feb 24, 2026, 10:54 AM

Hey, I'm trying to replace a fitting on my tractor. Just wanna make sure this one will fit. My old one's a 3/4" JIC male.

Question by: Billy H on Nov 14, 2025, 7:01 AM

For replacement, confirm that the other end you need to connect to is a 25mm DIN standpipe female. This fitting has that combination, 3/4" JIC male on one side, and 25mm DIN standpipe female on the other.

Answer by: Customer Support on Nov 15, 2025, 9:43 PM

Got a machine running DIN metric lines and need to tie into a JIC fitting on a pump, this adapter go straight, or does it have an angle to it?

Question by: Connie E on Oct 11, 2025, 4:36 PM

Straight through, no angle. One end is a 3/4" JIC male at 1-1/16-12 UN thread, the other picks up a 25mm DIN standpipe female connection. Steel construction, 65mm end to end, so it should drop right into that kind of bridging application without needing any extra bends or offsets.

Answer by: Customer Support on Oct 13, 2025, 8:43 AM
