Male Jic X Metric Standpipe

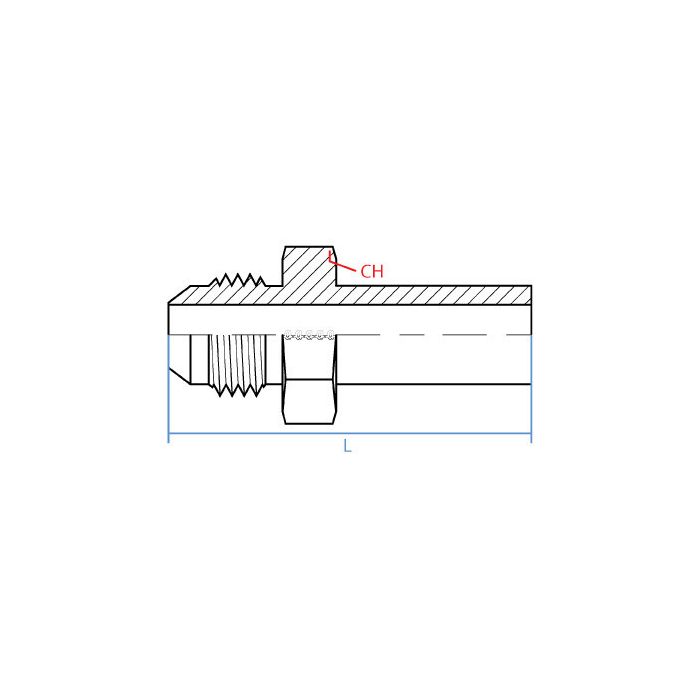

CH Width 32mm	L Length 63.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 20mm	Side 2 Gender F	Side 2 Size 20mm	Side 2 Type Din Standpipe	Alternate Part Numbers Alternate Part Number MI-02116292, Alternate Part Number MINO-03671J02634	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-12-20	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

What size wrench do I need for the standpipe side of this?

Question by: Melvin M on Jun 11, 2025, 9:19 AM

Its 20mm DIN standpipe connection on Side 2 has a width of 32mm. This should give you the correct standpipe wrench size.

Answer by: Customer Support on Jun 13, 2025, 6:12 AM

got a hose end that’s 3/4 JIC male, will this standpipe match up to it?

Question by: Floyd P on Jun 22, 2025, 9:43 AM

On the JIC side, you are working with a 1-1/16 - 12 UN male JIC connection that’s called out for 3/4 inch fittings, so it matches a 3/4 JIC setup on that end. The other end is a 20mm female DIN standpipe connection.

Answer by: Customer Support on Jun 23, 2025, 10:35 AM
