Male Jic X Metric Standpipe

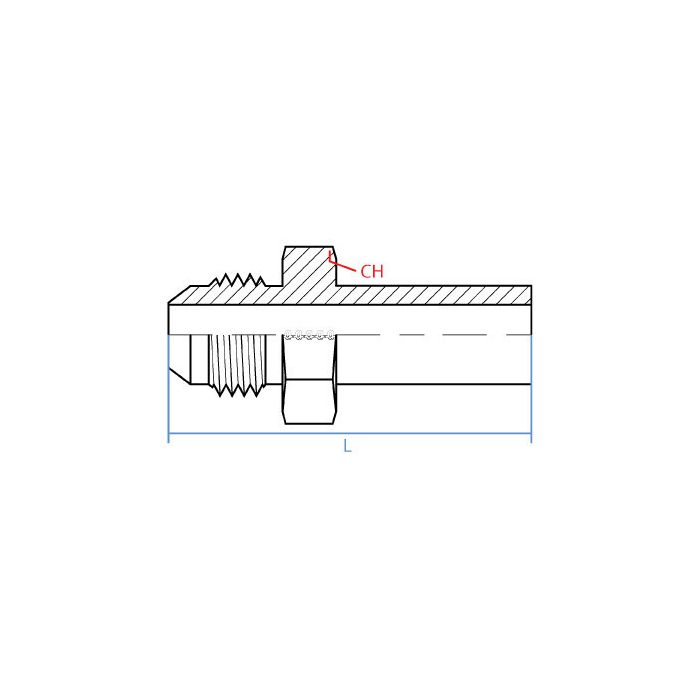

CH Width 32mm	L Length 64.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 18mm	Side 2 Gender F	Side 2 Size 18mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-12-18	Product Weight 0.30 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end that’s 3/4 JIC male, will this standpipe mate up to an 18mm DIN standpipe port on the other side?

Question by: Steve M on Oct 27, 2025, 8:55 PM

For tying two standards together, it bridges a 3/4 inch male JIC end with 1-1/16-12 UN threads over to an 18 mm female DIN standpipe connection, all in a straight adapter.

Answer by: Customer Support on Oct 29, 2025, 4:17 PM
