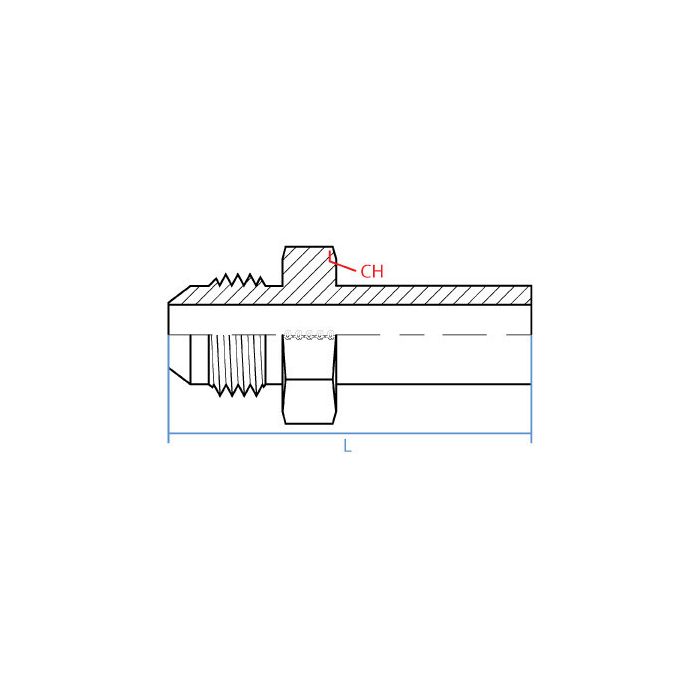

Male Jic X Metric Standpipe

CH Width 32mm	L Length 63.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout 16mm	Side 2 Gender F	Side 2 Size 16mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-12-16	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting hold up if I'm running a hydraulic system pretty much all day, every day?

Question by: Ronnie R on May 3, 2025, 8:49 AM

This standpipe, manufactured by Adaptall, is made with durable steel, so it should provide a reliable and lasting connection even with frequent use.

Answer by: Customer Support on May 5, 2025, 8:48 AM

trying to replace a fitting, is this the one that goes from a 3/4 JIC male to a 16mm DIN standpipe female?

Question by: Gary H on Oct 20, 2025, 8:26 AM

On the JIC side you are getting a 1-1/16 - 12 UN male connection, which is the 3/4 inch JIC size callout. The other end is a 16 mm female DIN standpipe, so it is meant to bridge that JIC to metric standpipe connection.

Answer by: Customer Support on Oct 21, 2025, 8:50 PM
