Male Jic X Metric Standpipe

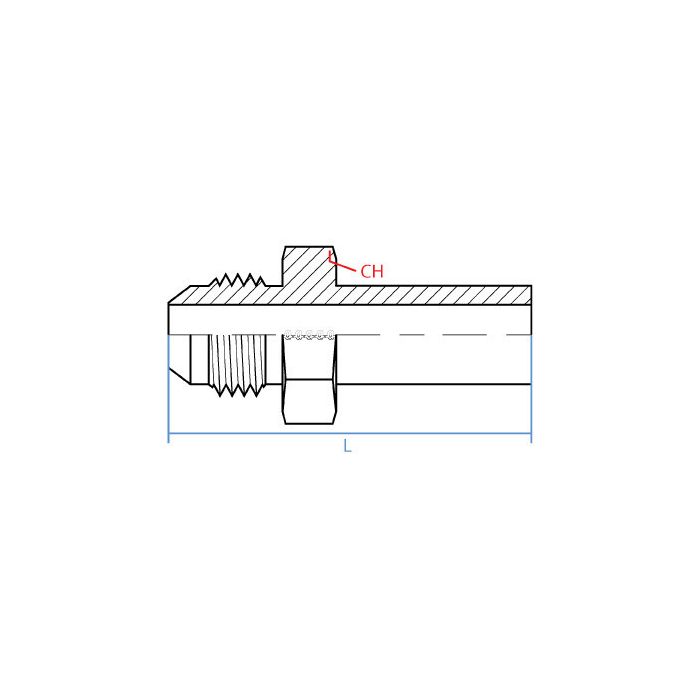

CH Width 27mm	L Length 55.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout 16mm	Side 2 Gender F	Side 2 Size 16mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-10-16	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a 16mm DIN standpipe port on a hydraulic manifold and need to tie into a JIC line, this the right piece for that?

Question by: Travis M on Apr 3, 2026, 9:11 PM

That's exactly the application this fitting covers. One end is a 7/8-14 UNF male JIC connection sized for 5/8" fittings, and the other end is a 16mm female DIN standpipe. So if you've got a DIN standpipe port on your manifold and a JIC hydraulic line coming in, this adapter bridges that transition in a straight, compact package. Overall length runs 55.5mm with a 27mm width, so it fits tight without a lot of extra bulk.

Answer by: Customer Support on Apr 5, 2026, 10:11 AM

Is this here standpipe made outta steel? Just wanna make sure it can handle the pressure.

Question by: Shawn H on Nov 29, 2025, 2:46 PM

it's steel. So it's built tough for them heavy-duty jobs.

Answer by: Customer Support on Dec 1, 2025, 6:37 AM
