Male Jic X Metric Standpipe

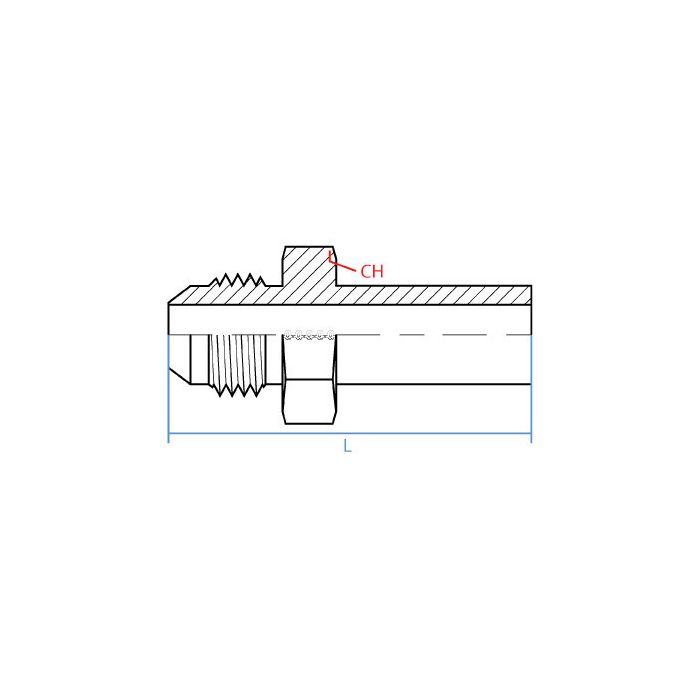

CH Width 22mm	L Length 47.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 15mm	Side 2 Gender F	Side 2 Size 15mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-08-15	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Does this thing go straight from a JIC fitting to a metric standpipe, or is there some kind of adapter situation in the middle?

Question by: Wes A on Jul 13, 2025, 9:57 PM

Straight connection, no middle pieces needed. One end is a 3/4-16 UNF Male JIC and the other is a 15mm Female DIN Standpipe. The part handles both sides in a single fitting, so you're not stacking adapters to make it work.

Answer by: Customer Support on Jul 14, 2025, 9:57 PM

trying to hook a 1/2" JIC male to a 15mm DIN standpipe female, is this the right piece?

Question by: Daryl F on Feb 18, 2026, 8:18 AM

For that exact mix of ends, it matches up. Side 1 is a 1/2 inch JIC male with a 3/4-16 UNF thread, and side 2 is a 15 mm DIN standpipe female.

Answer by: Customer Support on Feb 19, 2026, 9:14 AM
