Male Jic X Metric Standpipe

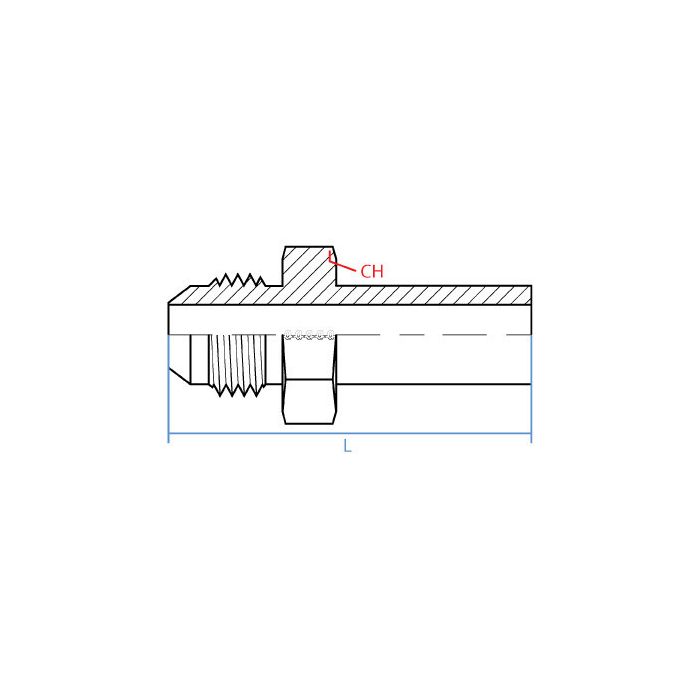

CH Width 22mm	L Length 47.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 14mm	Side 2 Gender F	Side 2 Size 14mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-08-14	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting work to connect a JIC hose to a metric standpipe?

Question by: Sheila J on Dec 14, 2025, 4:24 PM

Yeah, this fitting is designed to adapt between a JIC (3/4 - 16 UNF) connection and a 14mm DIN standpipe. Should do the trick for ya.

Answer by: Customer Support on Dec 16, 2025, 6:00 AM

trying to swap a fitting out, is this one a straight adapter from 1/2" JIC male over to a 14mm DIN standpipe female?

Question by: Connie B on Nov 15, 2025, 8:01 PM

For matching up two different standards, it’s a straight steel adapter with a male JIC on side 1 and a female DIN standpipe on side 2. Side 1 is 1/2 inch JIC with a 3/4-16 UNF thread, and side 2 is a 14 mm DIN standpipe connection.

Answer by: Customer Support on Nov 16, 2025, 9:03 PM
