Male Jic X Metric Standpipe 9200-06-10

Specifications

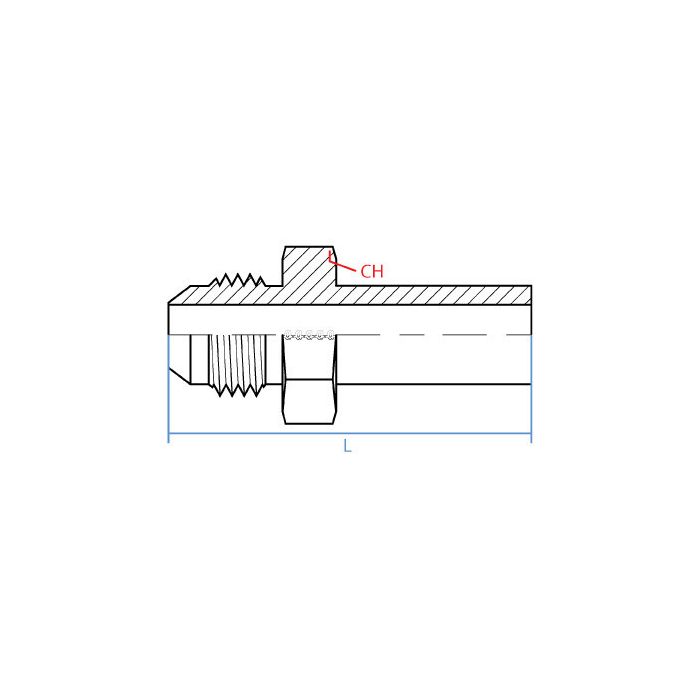

CH Width 16mm	L Length 42.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout 10mm	Side 2 Gender F	Side 2 Size 10mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-06-10	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a 3/8 jic hose to a 10mm din standpipe port, is this the right adapter?

Question by: Vince M on Oct 1, 2025, 9:50 AM

It’s a straight steel adaptor with a 9/16-18 UNF male JIC on one end (3/8 size) and a 10mm female DIN standpipe on the other, so it matches the connection types and sizes you described.

Answer by: Customer Support on Oct 2, 2025, 8:52 PM

Got a machine running 10mm DIN standpipe lines and need to tie into a JIC system. This the right piece for that?

Question by: Connie G on May 25, 2025, 10:23 AM

That's exactly the application this fitting covers. One end is a 9/16-18 UNF male JIC, which handles 3/8" JIC connections, and the other end is a 10mm female DIN standpipe. So if you're bridging those two systems, this is the adapter you want. It's straight, 42.1mm long, and made from steel, so it'll hold up in a working industrial setup without any fuss.

Answer by: Customer Support on May 27, 2025, 9:17 AM

Will this here standpipe work to connect somethin' with a 9/16-18 UNF male Jic to a 10mm female Din?

Question by: Todd P on Apr 26, 2025, 12:47 PM

That's what it's made for. This adaptor has a 9/16 - 18 UNF male Jic fitting on one side (good for 3/8" connections) and a 10mm female Din Standpipe fitting on the other.

Answer by: Customer Support on Apr 28, 2025, 6:06 AM
