Male Jic X Metric Standpipe

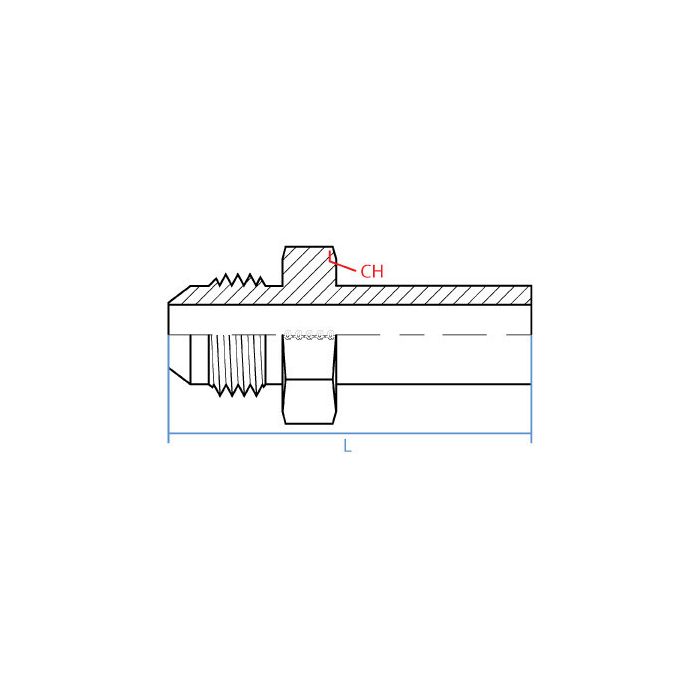

CH Width 14mm	L Length 40mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout 8mm	Side 2 Gender F	Side 2 Size 8mm	Side 2 Type Din Standpipe	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9200-04-08	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap an old fitting out, is this the one that goes from 7/16-20 JIC male to an 8mm DIN standpipe female?

Question by: Keith S on Sep 25, 2025, 12:21 PM

Match the ends and you are in the right ballpark. Side 1 is a 7/16-20 UNF male JIC for 1/4 inch size fittings, and side 2 is an 8 mm DIN standpipe female.

Answer by: Customer Support on Sep 26, 2025, 9:51 PM

Got an older piece of equipment running 8mm DIN metric lines and need to tie into a JIC system on the new pump setup, this fitting gonna bridge that gap?

Question by: Howard S on Sep 18, 2025, 7:25 AM

That's exactly the job this standpipe handles. One end is a 7/16-20 UNF male JIC connection sized for 1/4" fittings, and the other end accepts an 8mm DIN standpipe female connection. So yes, it bridges a JIC hydraulic circuit to a metric DIN standpipe line in one compact piece. At 40mm long with a 14mm wrench flat, it fits into tighter hydraulic connections runs without a lot of fuss.

Answer by: Customer Support on Sep 20, 2025, 6:29 AM
